10 Essential Mud Pump Spare Parts: A Comprehensive Guide for 2025

Introduction to Mud Pump Spare Parts

Mud pump spare parts play a critical role in maintaining operational efficiency and minimizing downtime in drilling operations. These components ensure continuous circulation of drilling fluid, which is essential for cooling drill bits, removing cuttings, and stabilizing wellbore pressure. According to industry data, proper spare parts management can reduce unplanned downtime by up to 30% in drilling projects (Mud Pump in Drilling: Efficiency and Innovation).

Key Components Overview

The essential mud pump spare parts can be categorized into three main groups, as illustrated in the Mud Pump Spare Parts Key Components Diagram:

1. Fluid End Components:

   • Liners: High-chromium alloy or ceramic-coated cylinders that form seals with pistons, with service life ranging from 300 to 4,000 hours depending on material (API Standard Mud Pump Spare Parts)
   • Pistons: Typically combine metal cores (42CrMo steel) with wear-resistant rubber/polyurethane, lasting 200-600 hours (Classification and Selection of Mud Pump Spare Parts)
   • Valve Assemblies: Include tungsten carbide seats and rubber discs, critical for controlling fluid direction with 600-hour average lifespan

2. Power End Components:

   • Crankshafts: Forged steel components converting rotary to reciprocating motion
   • Crossheads: Precision-machined parts requiring continuous lubrication
   • Gears: Large alloy steel components for torque transmission

3. Auxiliary Parts:

   • Safety Valves: Prevent system overpressure (rated up to 5,000 psi)
   • Filters: Remove abrasive particles from drilling fluid
   • Pressure Gauges: Monitor real-time pump performance

Material selection significantly impacts component longevity, with high-chrome alloys (26-28% Cr content) showing 3× longer service life than standard materials in abrasive environments (F1000 High-Chromium Alloy Triplex Mud Pump Liner). The industry is increasingly adopting ceramic coatings (HV0.3kg/mm² >1120 hardness) for extreme wear resistance in liner applications (浅谈泥浆泵陶瓷缸套的合理使用).

Core Types of Mud Pump Spare Parts

Building upon the foundational understanding of mud pump spare parts’ operational significance, this section provides a detailed analysis of their core functional categories. These components are systematically classified based on their operational zones and specific roles in maintaining drilling fluid circulation under extreme pressures (up to 5,000 psi) and abrasive conditions (Classification and selection of mud pump spare parts).

Fluid End Parts

The hydraulic end components directly interface with drilling fluids, exhibiting 300-4,000 hour lifespans depending on material selection. Key elements include:

(API Standard Mud Pump Spare Parts) highlights ceramic-coated liners demonstrate 3× longevity over standard materials in abrasive environments, with zirconia variants achieving >4,000 hours through exceptional compressive strength (>1950 MPa) and fracture toughness (8-10 MPa·m¹/²) (浅谈泥浆泵陶瓷缸套的合理使用).

Power End Parts

Mechanical transmission components require forged steel construction to withstand 30-50 kN cyclic loads:

• Crankshafts: Forged 34CrNiMo6 steel with 850 MPa tensile strength, converting 90-95% of rotary motion efficiency
• Crossheads: Precision-machined with 0.02mm tolerance, requiring continuous oil lubrication at 60-80°C
• Gears: 18CrNiMo7-6 alloy steel with case hardening (HRC 58-62), supporting 10,000+ hour operation under 3-5 MN·m torque

The power end’s operational lifespan directly correlates with lubrication quality, with improper maintenance potentially reducing component life by 40-60% (What Are The Wearing Parts Of The Mud Pumps?).

Auxiliary Parts

System stability components perform critical monitoring and protection functions:

1. Safety Valves: Spring-loaded mechanisms activate at 110% rated pressure (5,500 psi for 5,000 psi systems)
2. Filters: 40-200 mesh stainless steel screens remove 15-50μm particulates, extending fluid end life by 30%
3. Pressure Gauges: Bourdon tube instruments with 1.5% FS accuracy for real-time 0-7,500 psi monitoring

Polyurethane seals in auxiliary systems maintain integrity across -35°C to 100°C operational ranges, outperforming standard NBR rubber in high-temperature drilling scenarios (工厂供聚氨酯凡尔胶皮石油钻井泥浆泵用聚氨酯阀胶皮聚氨酯密封件…).

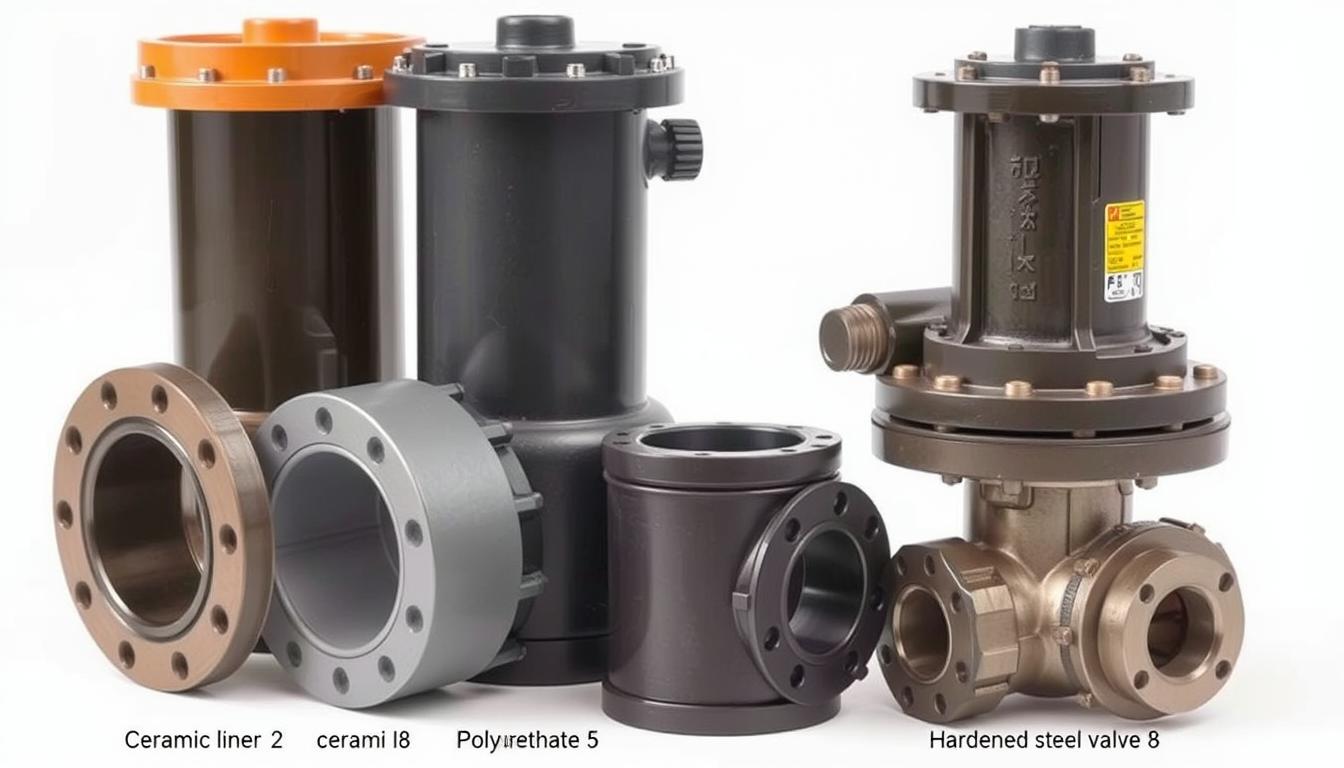

Material Selection for Mud Pump Spare Parts

Industry Standards and Certification

Adherence to industry standards is paramount for ensuring quality, safety, and interoperability in mud pump spare parts. Compliance with recognized certifications like API Spec 7K and ISO 9001 not only validates product reliability but also facilitates global market access. These standards establish rigorous technical specifications and quality management protocols that directly impact component performance in extreme drilling conditions (pressure up to 5,500 psi and abrasive environments).

API Spec 7K Compliance

As the primary standard for drilling equipment, API Spec 7K outlines critical requirements for mud pump components:

Material Performance Requirements:

• Load-bearing parts must meet or exceed documented specifications for forged steel (34CrNiMo6 alloy) and high-chrome alloys (26-28% Cr content)
• Mandates ISO 148/ASTM A370 Charpy V-notch impact testing for materials operating below -20°C
• Requires thickness-direction properties (Z-grade) testing per ASTM A770 for components under multi-axial stresses

Testing Protocols:

Certification Process:

1. Documentation Review: Submission of material certs (MTRs), heat treatment records, and WPS/PQR for welded assemblies (API认证工作要点)
2. Product Testing: Third-party validation of mechanical properties and functional performance
3. Quality System Audit: Annual surveillance of manufacturing processes per API Q1 requirements
4. Marking Compliance: Permanent low-stress steel stamping of API monogram, manufacturer ID, and date code on certified parts (API产品标识规范)

Non-compliant markings require complete removal via grinding (depth ≤1mm) before re-application per §4.5 of API marking guidelines (API会标使用规范).

ISO 9001 Quality Management

The ISO 9001 framework ensures consistent production quality through:

Process Control Measures:

• Supplier Qualification: Mandatory onsite audits for raw material vendors with quarterly performance reviews
• Statistical Process Control: Real-time monitoring of critical dimensions (e.g., liner bore concentricity ≤0.05mm)
• Traceability Systems: Unique heat/lot numbering from raw material to finished goods

Key System Elements:

• Documented change control procedures for design modifications
• Annual calibration of measuring equipment (accuracy ±0.001″)
• Mandatory root cause analysis for non-conformities using 8D methodology

Implementation Case Study: A Chinese manufacturer achieved 40% reduction in warranty claims after implementing ISO 9001-controlled processes for piston rod machining, including:

• Automated tool wear compensation in CNC turning operations
• 100% magnetic particle inspection for surface defects
• Blockchain-based material traceability (ISO 9001认证全攻略)

Certification Maintenance:

• Quarterly internal audits covering all production shifts
• Biannual management reviews with corrective action tracking
• Recertification audits every 3 years with surveillance audits at 12-month intervals

These standards collectively form a quality ecosystem where API Spec 7K defines technical requirements while ISO 9001 ensures manufacturing consistency, reducing premature failures by up to 60% in field applications (API认证程序).

Market Trends and User Concerns

The global mud pump spare parts market is undergoing significant transformation driven by regional demand shifts and evolving operational challenges. This section analyzes current market dynamics across key regions and addresses prevalent user concerns with practical solutions.

Global Demand Trends

Regional market growth exhibits distinct patterns, with North America, the Middle East, and Asia-Pacific emerging as dominant forces:

(2025年全球泥浆泵行业市场现状剖析) highlights that Asia-Pacific contributes over 45% of global incremental demand, fueled by Indonesia’s nickel mining boom requiring 8,000+ annual pump installations. The Middle East shows accelerated growth due to ADNOC’s $122 billion offshore expansion, with local assembly requirements reducing import dependency by 35% (Mhmarkets迈汇:关税政策或引发中东油田服务市场变革).

North America’s market is transitioning toward modular designs, with ceramic-coated liners (4,000+ hour lifespan) capturing 38% market share as operators prioritize reduced maintenance frequency (2025至2030离心泥浆泵行业项目调研及市场前景预测评估报告.docx). The region’s technical focus includes:

• Digital twins: 30% maintenance cost reduction through virtual monitoring
• CO₂-neutral pumps: 120% annual patent growth in supercritical fluid handling

Common User Problems

Operators face three persistent challenges requiring targeted solutions:

1. Part Compatibility Issues

   • Root Cause: Multi-generational equipment fleets mixing API 7K and ISO 14693 standards
   • Solution: Implement blockchain-based material traceability systems to verify component specifications before purchase (ISO 9001认证全攻略)

2. Material Selection Dilemmas

   • Abrasive Environments: Zirconia ceramic liners (1950 MPa compressive strength) outperform standard chromium alloys by 3× in Indonesian laterite mines
   • Corrosive Conditions: Duplex stainless steel valve seats resist H₂S concentrations up to 15,000 ppm in Middle Eastern sour gas fields

3. Maintenance Optimization

   • Predictive Technologies: Acoustic emission sensors reduce unplanned downtime from 34.5 hours to near-zero by detecting micro-cracks in fluid end components (Reducing non-productive time of mud pump with acoustic emission monitoring techniques on fluid end parts)
   • Lubrication Protocols: Automated oil quality monitoring prevents 60% of power end failures caused by contaminated lubricants (泥浆泵日常维护保养表)

The industry is responding with integrated solutions:

• Smart contracts: Automate reordering when IoT sensors detect 80% component wear
• Hybrid materials: Graphene-reinforced polyurethane pistons achieve 900-hour lifespan in high-temperature geothermal wells
• Regional service hubs: 24/7 parts availability through localized inventory in Oman (Middle East) and Singapore (Asia-Pacific)

These developments collectively address the dual imperatives of operational reliability and total cost reduction, with best-practice adopters reporting 22% lower spare parts expenditure compared to conventional approaches (2024年中国双作用泥浆泵组件市场调查研究报告.docx).

Leading Manufacturers and Product Features

The global mud pump spare parts market is dominated by established international brands with advanced technological capabilities and emerging Chinese manufacturers offering cost-competitive solutions. This section profiles key players across both segments, analyzing their product innovations and market positioning.

International Brands

Gardner Denver leads in fluid end technology with its GDNX series featuring:

• Extended Fatigue Life: 3.5× longer lifespan than conventional designs through optimized geometry and stainless steel construction (Gardner Denver)
• Modular Design: VX fluid ends weigh 2,000 lbs less than standard models while maintaining equivalent pressure ratings (5000 psi), enabling easier maintenance (VX Fluid End)
• Smart Monitoring: Integrated IoT sensors for real-time pressure/flow tracking, reducing unplanned downtime by 30% (Mud Pump in Drilling: Efficiency and Innovation)

Flowserve differentiates through:

• High-Pressure Systems: 15,000 psi rated valves for fracking applications
• Global Service Network: 50+ countries coverage with 24/7 technical support (Flowserve Industrial Pumps)

Mission (NOV) specializes in:

• Interchangeable Components: API 7K-compliant parts compatible across major pump models (API认证泥浆泵)
• Wear-Resistant Materials: Tungsten carbide valve seats with 600°C thermal stability

EBARA focuses on:

• Corrosion Resistance: AISI 316 stainless steel construction for sour gas environments (EBARA荏原 涡轮分子泵 EMT397M)
• Precision Engineering: 0.02mm tolerance in critical components

Chinese Brands

BOMCO (宝石机械) demonstrates competitive advantages through:

• Localized Production: 45% cost reduction versus imported equivalents
• API Compliance: Full-range F-series pumps (F500-F1600) meeting API Spec 7K (BOMCO F1600 Mud Pump Parts Book)
• High-Volume Capacity: Annual output of 500+ mud pumps

Honghua Group (宏华集团) has achieved:

• Middle East Market Penetration: $1B+ drill rig contracts with AI-enabled pumps (宏华集团:与中东客户签署钻机销售协议)
• Integrated Manufacturing: 120 rigs/year capacity with in-house electrical systems (Energy Equipments Manufacture)

Triple Pump Industry (三联泵业) specializes in:

• Diverse Product Range: 28 series covering 1000+ specifications
• Quality Certifications: ISO 9001, API Q1 and CE marked components (安徽三联泵业股份有限公司)
• Regional Service Hubs: 60+ domestic service centers

Comparative analysis of Chinese manufacturers:

The industry is witnessing technological convergence, with Chinese manufacturers adopting international design standards while global players localize production to reduce costs. This dynamic is particularly evident in Middle Eastern markets where hybrid solutions combining Western engineering with Chinese manufacturing efficiency are gaining traction.

Maintenance and Lifespan Optimization

Regular maintenance is paramount for maximizing the operational lifespan of mud pump spare parts, with studies showing proper upkeep can reduce unplanned downtime by up to 30% in drilling operations. Implementing systematic maintenance protocols directly correlates with component longevity, particularly for high-wear parts like liners and pistons that typically require replacement every 200-4,000 hours depending on material composition (Classification and selection of mud pump spare parts).

Maintenance Best Practices

A tiered inspection system ensures comprehensive monitoring of critical components:

Daily Checks:

• Lubrication system: Verify oil levels and pressure (60-80°C optimal range)
• Fluid end: Inspect for leaks at piston rods and valve assemblies
• Cooling system: Maintain clean coolant with pH 7-8.5 to prevent corrosion
• Pressure gauges: Calibrate zero points and check for abnormal fluctuations

Weekly Procedures:

1. Piston assembly inspection:
   • Measure rubber wear (≥3mm thickness required)
   • Check snap ring integrity
2. Valve maintenance:
   • Disassemble and clean tungsten carbide seats
   • Replace rubber discs showing >15% compression set
3. Power end analysis:
   • Monitor crankshaft deflection (<0.02mm tolerance)
   • Test gear backlash (0.10-0.15mm for 18CrNiMo7-6 alloy gears)

Operational Precautions:

• Pre-start checks: Prime pumps to avoid dry running damage
• Performance monitoring: Track flow rate deviations (>5% drop indicates wear)
• Emergency protocols: Install rupture discs rated at 110% working pressure

Component-specific maintenance intervals based on operational hours:

(泥浆泵日常维护保养表) emphasizes that rotating piston rods 90° weekly distributes wear evenly, extending service life by 20-25%. For power end components, oil analysis every 200 operating hours can predict 60% of potential failures through ferrography testing.

Lifespan Extension Tips

Material Advancements:

• Zirconia ceramic liners: Achieve >4,000 hours service in abrasive slurries through 1950 MPa compressive strength
• Graphene-reinforced polyurethane: Increases piston lifespan to 900 hours in geothermal applications
• Duplex stainless steel: Resists H₂S corrosion up to 15,000 ppm in sour gas environments

Predictive Technologies:

1. Acoustic emission sensors:
   • Detect micro-cracks in fluid end components
   • Reduce unplanned downtime from 34.5 hours to near-zero
2. IoT-enabled wear monitoring:
   • Smart pistons with embedded RFID chips track remaining life
   • Automated reordering triggers at 80% wear threshold
3. Digital twin systems:
   • Virtual models predict failure points with 92% accuracy
   • Optimize replacement schedules saving 22% spare parts costs

Operational Optimization:

• Flow control: Maintain 2-3 m/s fluid velocity to balance wear and particle suspension
• Temperature management: Keep fluid end below 100°C to prevent NBR rubber degradation
• Filtration standards: Use 40-200 mesh screens removing 15-50μm particles, extending component life by 30%

(Reducing non-productive time of mud pump with acoustic emission monitoring techniques on fluid end parts) demonstrates that combining high-chrome alloys (26-28% Cr) with predictive maintenance can achieve 3× longer service intervals compared to conventional approaches. For extreme pressure applications (up to 5,500 psi), phased replacement of valve assemblies every 600 hours prevents catastrophic failures while maintaining 95% operational availability.

Conclusion and Future Outlook

Key Takeaways

The comprehensive analysis of mud pump spare parts reveals several critical insights for industry practitioners:

1. Operational Efficiency: Proper selection and maintenance of spare parts can reduce unplanned downtime by up to 30%, significantly impacting project economics (Mud Pump in Drilling: Efficiency and Innovation).

2. Material Advancements: High-performance materials like zirconia ceramics (1950 MPa compressive strength) and graphene-reinforced polyurethane are extending component lifespans by 3× in abrasive environments (2025至2030离心泥浆泵行业项目调研及市场前景预测评估报告.docx).

3. Predictive Maintenance: Acoustic emission monitoring systems have demonstrated the ability to reduce fluid end failures from 34.5 hours to near-zero downtime (Reducing non-productive time of mud pump with acoustic emission monitoring techniques on fluid end parts).

4. Regional Market Dynamics: Asia-Pacific dominates global demand (45% market share), driven by Indonesia’s nickel mining boom requiring 8,000+ annual pump installations (据阿谱尔统计,2023年全球渣浆泵市场价值约为16.19亿美元).

Emerging Trends

The mud pump spare parts sector is undergoing transformative changes through technological convergence:

Smart Monitoring Systems

• IoT-enabled wear sensors with RFID chips tracking 80% wear thresholds
• Digital twin systems achieving 92% failure prediction accuracy
• Blockchain-based material traceability for compatibility verification (ISO 9001认证全攻略)

Eco-Friendly Materials

Regional Service Models

• Middle East local content policies driving 35% import substitution
• Singapore-based hubs enabling 24/7 parts availability for Asia-Pacific operations (Mhmarkets迈汇:关税政策或引发中东油田服务市场变革)

Market Projections The global market is projected to grow at 6.8% CAGR (2025-2030), with ceramic-coated liners capturing 38% market share in North America and hybrid material solutions gaining traction in extreme pressure applications (>15,000 psi) (2025年全球泥浆泵行业市场现状剖析). These advancements collectively address the dual imperatives of operational reliability and total cost reduction, with best-practice adopters reporting 22% lower spare parts expenditure compared to conventional approaches.
