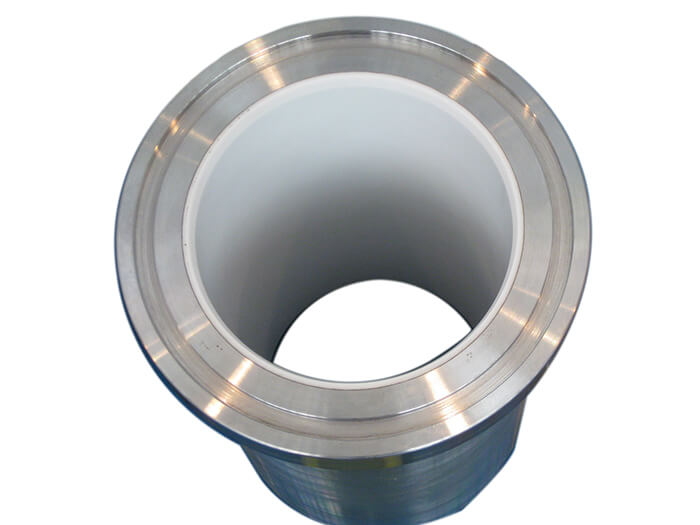

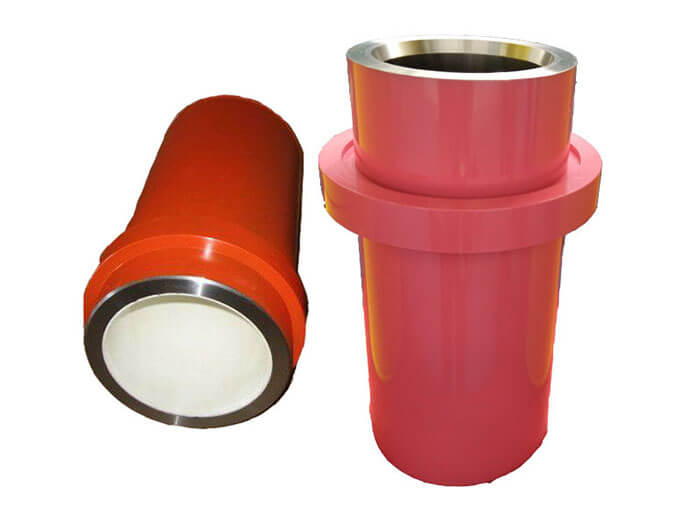

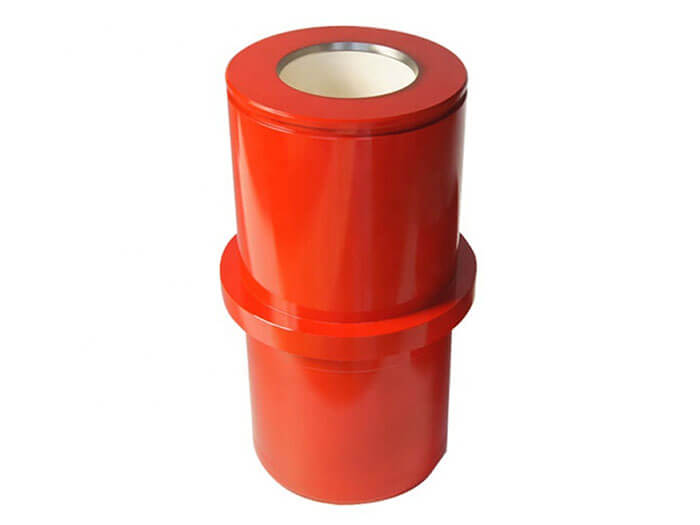

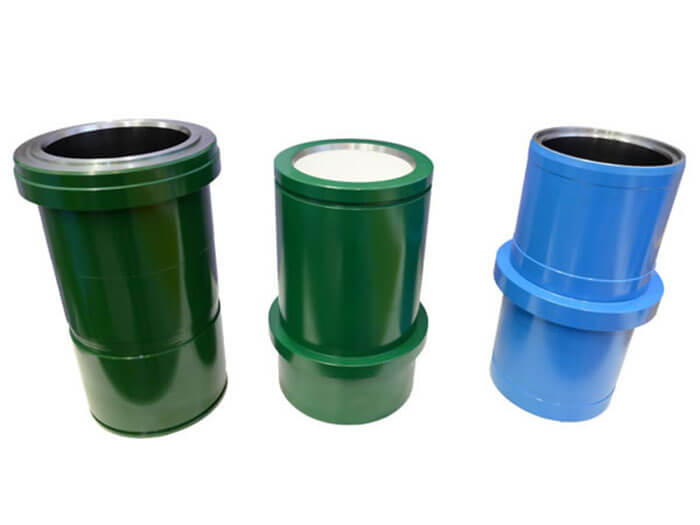

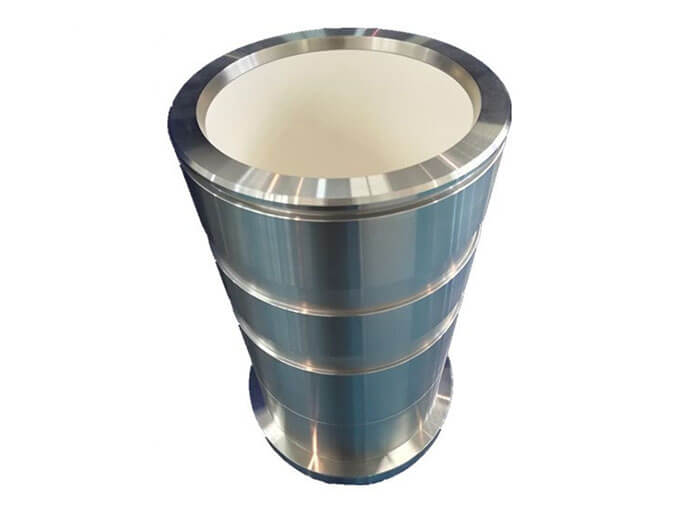

1-Outer hull: forged by 45# steel
2-Inner sleeve: zirconia ceramic(ZTA/TZP)
3-Service life: More than 4000 hours
4-Roughness: Surface finish 4-8rms
5-Customized Liners according to drawings can be produced
6-HP design with shoulder-on-hull design to prevent sleeve slippage
7-100% interchangeable with the most common brands of mud pumps
8-World-class OEM factory, international tier one drilling contractor acceptance
9-Reduced liner and piston wear, Lower thermal load on the liner wash system, super performance in wear resistant, corrosion resistant, high hardness
|
TECHNICAL DATA |
|
|
Feature: |
HP design with shoulder-on-hull design to prevent sleeve slippage Reduced liner and piston wear Lower thermal load on the liner wash system better performance in wear resistant, corrosion resistant, high hardness |
|
Material: |
Outer hull: forged by 45# steel Inner sleeve: zirconia ceramic There are mainly two kinds of ceramic materials for inner sleeve: 1. ZTA: Compound ceramic material by tetragonal zirconia and aluminium oxide; 2. TZP: pure zirconia ceramic |
|
Roughness: |
Ra≤0.2 |
|
Hardness: |
HRA≥90 |
|
Service life: |
More than 4000 hours |
|
Model: |
Every model of the applicable pump are available |
|
Size： |
inch: 3″/ 3.5″/ 4″/ 4.5″/ 5″/ 5.5″/ 6″/ 6.25″/6.5″/ 6.75″/ 7″/ 7.25″/ 7.5″/ mm: 100/ 110/ 120/ 130/ 140/ 150/ 160/ 170/ 180 |
|
APPLICABLE PUMP |
American Block / Aplex(Myers) / Bomco / Brewster / Continental Emsco / Drillmec / Ellis Williams (Lewco) / Eweco / Gardner Denver / Gaso / Great American / Hong Hua / Ideco / L.J.R. / Loadmaster / LS-NOW / Massarenti / Maxus / National /Oilwell / OMEGA / OPI / Soilmec / TFI / TSC / Tulsa Rig Iron / Upetrom / Weatherford / Wilson / Wirth / Mattco / Russian Pump /Rongsheng / Qingzhou / |
LONGCHAO LINER ADVANTAGE
|
Excellent Production Capacity Our production base covers more than 50,000.00 sqm, and we can produce 30,000.00pcs pump liners per year. Our delivery time for one container pump liner can be achieved within one week;
|
International Acceptance Super Longchao, Super Quality is our business belief, Longchao pump liners were proved by wearing test and widely accepted by Tire one drilling contractors from Worldwide;
|
|
Verified Certification Our factory has been guaranteed with ISO9001 quality certificate, API SPEC Q1 AND API 7K certificate, ISO14001, ISO45001 management certificate;
|
Service and Support We can provide technical support during pre-sales and after sales. We support clients to select the model and material, and we support client to inspect and installation with our local service partner. |
Super LONGCHAO, Super Liner
Super LONGCHAO, Super Quality
More than 30 years dedication, LONGCHAO is now
the largest OEM manufacturer of Mud Pump Liner from China.
