Mud Pump Valve Seat: Technical Analysis, Applications & Industry Standards

Introduction to Mud Pump Valve Seats

Mud pump valve seats play a pivotal role in drilling operations by ensuring efficient and safe fluid circulation. These components form critical sealing interfaces with valves to control directional flow of drilling mud—a mixture of water, clay, and chemicals that lubricates drill bits, transports cuttings, and maintains wellbore stability. In high-pressure drilling environments, valve seats withstand abrasive particles and corrosive fluids, with failure potentially causing downtime or safety incidents (What are mud pump valves and valve seats? – Tjgstpump.com).

Key Components

The structural and material composition of mud pump valve seats determines their performance under operational stresses. Core components include:

1. Base Material

   • Alloy Steels: 20CrMnTi and 20CrNiMo are predominant, offering HRC58+ hardness after carburizing and quenching (API 7K Mud Pump Valve and Seat).
   • Ceramics: Zirconia or alumina-based materials excel in extreme abrasion resistance for high-temperature applications (高压泥浆泵用陶瓷球笼阀的制作方法).

2. Sealing Elements

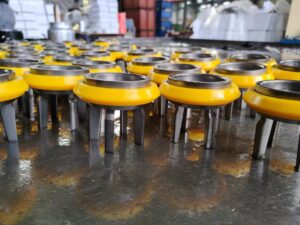

   • Polyurethane inserts (PU) provide elastic sealing with 300+ service hours, while nitrile rubber (NBR) suits moderate conditions (API 7K Mud Pump Valve Assembly with PU Insert).

3. Structural Features

   • Conical/Spherical Designs: Optimize sealing contact pressure distribution (一种泥浆泵用阀体阀座).

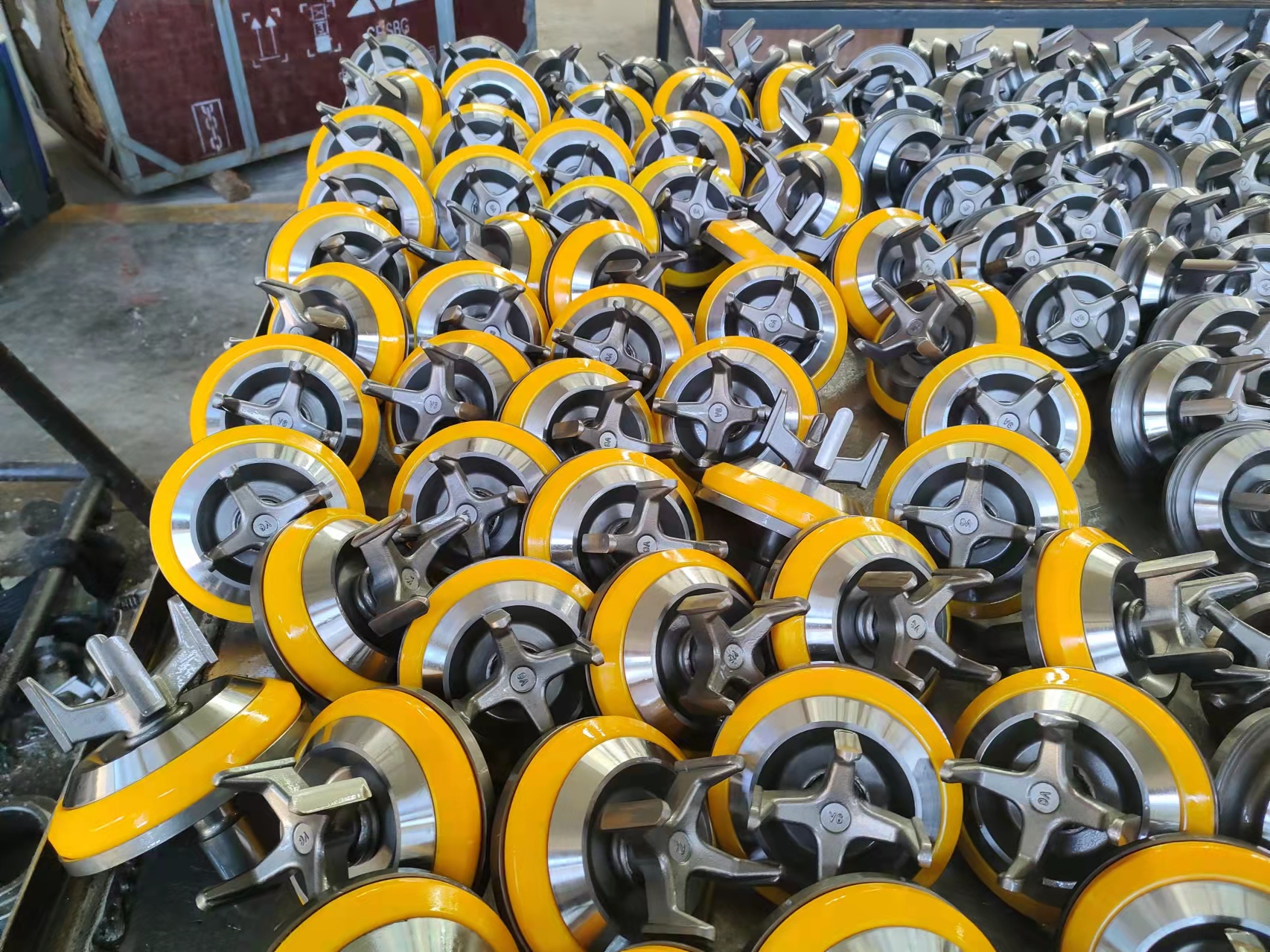

   • Ribbed Configurations: Four-rib designs (as shown below) enhance impact resistance in high-flow scenarios (泥浆泵阀体座(四筋阀体总成)).

4. Surface Treatments
   • Grinding finishes achieve Ra ≤0.05μm for sealing surfaces, while overlay welding with tungsten carbide extends wear life (Importance of the Valve Seat in a Mud Pump).

This foundational understanding sets the stage for deeper technical specifications and material comparisons in subsequent chapters.

Technical Specifications and Types

Mud pump valve seats are governed by stringent technical standards to ensure reliability in drilling operations. The primary certifications include API Spec 7K for design and performance, and ISO 9001 for quality management systems. API Spec 7K mandates material traceability, hardness requirements (e.g., HRC58+ for alloy steels), and pressure testing protocols, while ISO 9001 ensures consistent production processes (API SPEC 7K-2015(2017) 钻井和修井设备). These standards guarantee interchangeability of components across API-certified equipment, critical for global supply chains (API-Spec-7K产品规范要求).

Common Types

Valve seats are categorized by sealing geometry and structural features, each suited for specific operational conditions:

Type	Design Features	Applications	Image Reference
Conical	Tapered sealing surface (20–30° angle); optimizes contact pressure distribution	High-pressure drilling; resistant to abrasive particles (一种泥浆泵用阀体阀座)
Spherical	Curved interface; reduces stress concentration	Frequent cycling applications (e.g., directional drilling) (泥浆泵用凡尔阀结构)	–
Poppet	Flat or slightly convex seat; paired with ball valves	Low-to-medium pressure; corrosive environments (高压泥浆泵用陶瓷球笼阀的制作方法)	–

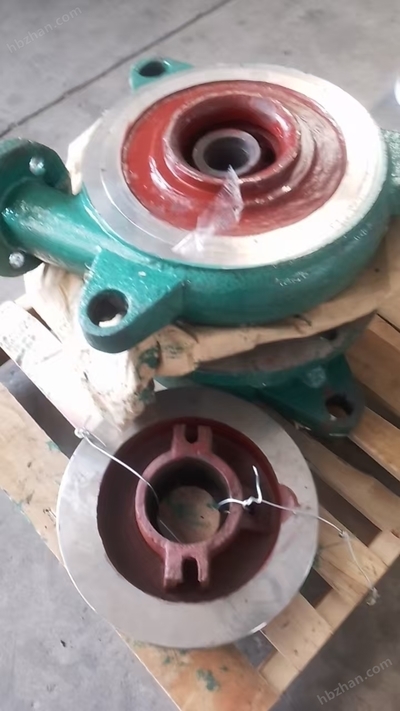

Ribbed	Four-rib reinforcement; enhances impact resistance	High-flow-rate mud pumps (泥浆泵阀体座(四筋阀体总成))

Material Selection

Material choice is dictated by abrasion resistance, corrosion tolerance, and thermal stability. Key options are compared below:

Note: Polyurethane (PU) or nitrile rubber (NBR) inserts are often integrated for elastic sealing, with PU offering 300+ service hours in abrasive conditions (API 7K Mud Pump Valve Assembly with PU Insert).

Installation and Maintenance Best Practices

Proper installation and regular maintenance are critical to ensuring optimal performance and longevity of mud pump valve seats. These components operate under extreme conditions, including high pressure, abrasive fluids, and corrosive environments, making correct installation procedures and systematic maintenance schedules essential for minimizing downtime and preventing catastrophic failures (泥浆泵的日常维护:每天、每周、每月、每年必做保养工作).

Installation Guidelines

Follow these step-by-step instructions to ensure correct installation of valve seats, with safety precautions and required tools:

1. Pre-Installation Preparation

   • Confirm valve seat type (conical/spherical/ribbed) matches pump specifications (泥浆泵阀体座(四筋阀体总成)).
   • Clean valve chamber thoroughly to remove debris using non-abrasive tools.
   • Inspect sealing surfaces for Ra ≤0.05μm finish as per API Spec 7K (API-Spec-7K产品规范要求).

2. Installation Steps for Different Types

   • Conical Valve Seats:
     • Align taper angle (20–30°) with valve body using alignment tools.
     • Apply thin layer of anti-seize compound to seating surface (锥形阀安装方案.docx).
   • Spherical Valve Seats:
     • Use torque-controlled press fit to avoid deformation of curved interfaces.
     • Verify concentricity with ≤0.02mm tolerance (…某球形阀门的结构示意图).
   • Ribbed Seats:
     • Ensure reinforcement ribs align with flow direction to prevent turbulence.

3. Safety and Tools

   • Required tools:
     • Hydraulic press (for ceramic seats)
     • Torque wrench (50–70 N·m for alloy steel seats)
     • Laser alignment device
   • Safety measures:
     • Lockout/tagout pump power before installation (海外石油钻井泥浆泵安装操作、维护保养规程.docx).

Maintenance Schedule

Adhere to the following maintenance intervals to prevent premature wear and seal degradation:

Troubleshooting Common Issues

Address frequent operational problems with these solutions:

1. Seal Failure

   • Symptom: Drilling mud leakage around seat periphery.
   • Solution:
     • Replace polyurethane/nitrile inserts immediately.
     • Overlay weld tungsten carbide on alloy seats for extended life (Importance of the Valve Seat in a Mud Pump).

2. Abrasive Wear

   • Symptom: Reduced flow efficiency due to enlarged seat orifice.
   • Solution:
     • Upgrade to zirconia ceramic seats for high-sand content muds (高压泥浆泵用陶瓷球笼阀的制作方法).

3. Corrosion Pitting

   • Symptom: Localized surface cavities in acidic environments.
   • Solution:
     • Apply nickel-based alloy coatings (e.g., Inconel 625) via plasma spray.

For API 7K-compliant systems, always replace valve seats as complete assemblies—mixing old and new components voids certification (API SPEC 7K-2005 钻井和修井设备规范).

Industry Standards and Quality Assurance

Adherence to industry standards and certifications is paramount for ensuring the reliability, safety, and interoperability of mud pump valve seats in demanding drilling operations. Compliance with API Spec 7K and ISO 9001 not only validates product quality but also facilitates global supply chain integration and reduces operational risks (API SPEC 7K-2015(2017) 钻井和修井设备).

API Spec 7K Compliance

API Spec 7K outlines rigorous requirements for mud pump valve seats, covering design, materials, and testing:

1. Design Specifications

   • Mandates conical/spherical sealing geometries (20–30° taper angles) to optimize pressure distribution (一种泥浆泵用阀体阀座).
   • Requires ribbed configurations (e.g., four-rib designs) for high-impact resistance in turbulent flow conditions (泥浆泵阀体座(四筋阀体总成)).

2. Material Requirements

   • Alloy steels (e.g., 20CrMnTi) must achieve HRC58+ hardness post carburizing/quenching; ceramics (zirconia) require HV1200 hardness for extreme abrasion resistance (API 7K Mud Pump Valve and Seat).
   • Tungsten carbide overlay welding is mandatory for surfaces exposed to abrasive slurries (Importance of the Valve Seat in a Mud Pump).

3. Testing Protocols

   • Pressure testing under conditions up to 7,500 psi (52 MPa) per API 7K-2015 (API SPEC 7K-1994 钻井设备规范第一版).
   • Non-destructive testing (NDT) for subsurface cracks via ultrasonic methods, with ≤0.3mm pitting tolerance on sealing surfaces (泥浆泵阀座更换判定标准).

4. Interchangeability

   • Components must maintain dimensional consistency across API-certified equipment (API-Spec-7K产品规范要求).

ISO 9001 Quality Management

ISO 9001 ensures consistent production quality through systematic process control:

Certification processes like API 7K involve:

• 4–6 months for application review and on-site audits (API认证程序及API会标认证标准).
• $4,000–$7,000 in fees per product specification (API认证咨询_API认证申请流程).

By aligning with these standards, manufacturers like Schlumberger and NOV ensure valve seats meet global operational demands while minimizing downtime (API 7k Standard Mud Pump Valve Body and Valve Seat).

Leading Suppliers and Market Overview

The global mud pump valve seat market is characterized by a mix of established multinational corporations and specialized regional manufacturers. Key players such as NOV (National Oilwell Varco) and Gardner Denver dominate the high-end segment with API 7K-certified products, while regional leaders like 德州德能石油机械 (Dezhou Deneng Petroleum Machinery) and emerging innovators like 宝鸡威特朗机械 (Baoji Weitelong Machinery) cater to niche applications with cost-effective solutions (德州德能石油机械有限公司).

Global Suppliers

Top-tier suppliers differentiate themselves through advanced material technologies, extensive certification portfolios, and global service networks:

Note: NOV’s MISSION valves feature color-coded urethane inserts (yellow/orange/black) for temperature rating identification, with Black Lightning variants rated for 300°F (149°C) continuous operation (MISSION Valve Specifications).

Regional and Emerging Suppliers

Regional manufacturers focus on localized supply chains and customized solutions:

1. 德州德能石油机械 (China)

   • Core Products:
     • Four-rib valve seats for F500–F2200 mud pumps
     • Interchangeable with OEM parts (e.g., NOV, Gardner Denver)
   • Technologies:
     • 20CrMnTi alloy steel with HRC58+ hardness
     • API 7K-compliant dimensional tolerances (≤0.02mm concentricity) (德州德能石油机械有限公司)

2. 宝鸡威特朗机械 (China)

   • Innovations:
     • Hydraulic valve seat pullers for F1300/F1600 pumps
     • Dual-seal valve seats with corrosion-resistant nickel plating (宝鸡威特朗液压拔阀器阀体阀座F130016002200泥浆泵阀座取出工具)

3. 山东双轮泵业 (China)

   • Specialization:
     • BW250 mud pump seats for low-pressure drilling
     • Modular designs for quick field replacement (防爆BW250泥浆泵阀座用途 自吸泥浆泵)

Emerging trends include ceramic-metal hybrid seats (e.g., zirconia-reinforced 17-4PH stainless steel) and smart wear monitoring systems embedded in valve assemblies (一种耐久型泥浆泵用阀座的制作方法).

Market Note: Regional suppliers account for ~35% of Asia-Pacific demand, with growth driven by shale gas exploration and offshore drilling projects in Southeast Asia (2025年泥浆泵阀箱行业深度研究分析报告.docx).

Case Studies and Special Applications

Mud pump valve seats demonstrate their critical performance in extreme drilling environments through real-world applications. The following case studies highlight material innovations and design adaptations under challenging conditions.

High-Pressure and High-Frequency Scenarios

In the Eagle Ford Shale formation, a high-pressure (7,500 psi) drilling operation experienced frequent valve seat failures due to rapid cycling (110 strokes/minute) and abrasive silica content in the mud. NOV’s MISSION Black Lightning valve seats with tungsten carbide overlay (HRC65+) and full-open geometry reduced downtime by 40% compared to standard alloy seats. Key adaptations included:

• Material Upgrade: Tungsten carbide welding on 20CrMnTi alloy base extended wear life to 800 hours under 26 MPa pressure (泥浆泵阀总成失效与预防.ppt).
• Design Modification: Spherical sealing surfaces (25° taper) minimized stress concentration during high-frequency impacts, reducing crack propagation rates by 35% (钻井现场泥浆泵液力端故障判断与分析论文).
• Maintenance Protocol: Ultrasonic testing every 50 hours detected sub-surface cracks ≥0.2mm, enabling proactive replacements before catastrophic failure (API Spec 7K 钻井和修井设备).

Corrosive and Abrasive Environments

For operations in sour gas wells (H₂S >10ppm) and high-sand-content formations, valve seats require specialized solutions:

1. Material Innovations

   • Zirconia Ceramic Seats: Used in Kuwait’s Burgan field, these achieved 1,200+ service hours in 15% HCl muds, outperforming alloy steels by 300% (高压泥浆泵用陶瓷球笼阀的制作方法).
   • 17-4PH Stainless Steel with Plasma-Sprayed Inconel 625: Deployed in North Sea platforms, this combination resisted chloride-induced pitting at 150°C (Schlumberger泥浆泵阀座材质).

2. Maintenance Strategies

   • Daily Flushing: 5% citric acid solution removed scale buildup in Angola’s offshore wells (泥浆泵的日常维护).
   • PU Insert Replacement: Polyurethane seals were swapped every 150 hours in the Permian Basin’s frac operations (API 7K Mud Pump Valve Assembly with PU Insert).

3. Case Example: Deepwater Gulf of Mexico
   Schlumberger’s GROVE IST valves with integrated elastomer-metal hybrid seats maintained ISO 15848-1 fugitive emissions compliance for 2 years in 3,000m HPHT wells, despite 20% barite content in drilling fluids (Low-E Valves | SLB).

These cases underscore the importance of tailored material selection and proactive maintenance in extending valve seat service life under extreme conditions.

Future Trends and Innovations

Explore emerging trends and technological advancements in mud pump valve seat design and manufacturing.

Material Innovations

The development of new materials aims to address the extreme conditions encountered in drilling operations, focusing on enhanced abrasion resistance, corrosion tolerance, and thermal stability:

1. Nanocomposites

   • Graphene-reinforced alloys: Improve hardness (HV1500+) and thermal conductivity (500 W/m·K) for high-temperature applications (一种耐久型泥浆泵用阀座的制作方法).
   • Ceramic-metal hybrids: Zirconia-reinforced 17-4PH stainless steel combines ceramic wear resistance with metal toughness, reducing brittleness (高压泥浆泵用陶瓷球笼阀的制作方法).

2. Bio-degradable Polymers

   • Polyglycolic acid (PGA) inserts for temporary seals in environmental-sensitive drilling, degrading within 6 months under subsurface conditions (一种泥浆泵耐磨耐腐蚀阀胶皮材料的制备方法专利).

3. Self-lubricating Materials

   • Tungsten disulfide (WS₂)-coated seats reduce friction by 40%, extending service life in high-frequency cycling scenarios (Importance of the Valve Seat in a Mud Pump).

Smart Technologies

The integration of smart monitoring systems revolutionizes predictive maintenance and operational efficiency:

1. Embedded Sensors

   • Strain gauges and temperature sensors: Embedded in valve seats to real-time monitor stress (0–50 MPa range) and thermal loads (up to 300°C), transmitting data via IoT platforms. Schlumberger’s GROVE IST valves use this for fugitive emissions compliance (Low-E Valves | SLB).

2. AI-driven Wear Prediction

   • Machine learning models analyze historical wear patterns from ultrasonic scans (0.1mm resolution) to forecast failure timelines with 90% accuracy, reducing unplanned downtime by 30% (泥浆泵的日常维护).

3. Additive Manufacturing

   • Laser powder bed fusion (LPBF) enables topology-optimized valve seat designs with 20% weight reduction and improved fluid dynamics (一种耐久型泥浆泵用阀座的制作方法).

These innovations underscore a shift toward materials with multifunctional properties and digital integration, aligning with Industry 4.0 standards for smarter, more sustainable drilling operations.

Conclusion and Recommendations

Mud pump valve seats are critical components in drilling operations, ensuring efficient fluid circulation and operational safety under extreme conditions. This report has detailed their technical specifications, material innovations, installation protocols, and compliance with industry standards like API Spec 7K and ISO 9001. Below are actionable recommendations for selection and maintenance to optimize performance and longevity.

Selection Criteria

Choose valve seats based on operational demands and environmental factors:

1. Operational Pressure & Flow Rate

   • High-pressure drilling: Use conical or ribbed designs (20–30° taper) for pressure distribution (泥浆泵阀体座(四筋阀体总成)).
   • High-flow applications: Opt for full-open or spherical seats to minimize turbulence (API 7K Mud Pump Valve and Seat).

2. Material Compatibility

   • Abrasive environments: Zirconia ceramic (HV1200) or tungsten carbide overlay (HRC65+) for wear resistance (高压泥浆泵用陶瓷球笼阀的制作方法).
   • Corrosive fluids: 17-4PH stainless steel with Inconel 625 coating for H₂S resistance (Schlumberger泥浆泵阀座材质).

3. Certifications

   • Ensure API 7K compliance for interchangeability and pressure testing up to 7,500 psi (API SPEC 7K-2015(2017) 钻井和修井设备).

4. Smart Technologies

   • For predictive maintenance, consider seats with embedded IoT sensors to monitor wear and temperature (一种耐久型泥浆泵用阀座的制作方法).

Maintenance Best Practices

Adhere to systematic maintenance schedules and industry standards to prevent failures:

1. Routine Inspections

   • Daily: Check for leaks (>5% flow deviation) and abnormal vibrations (泥浆泵检查方式全解析).
   • Weekly: Clean sealing surfaces; replace if pitting depth exceeds 0.3mm (泥浆泵阀座更换判定标准).

2. Proactive Replacements

   • Polyurethane inserts: Replace every 150 hours in abrasive conditions (API 7K Mud Pump Valve Assembly with PU Insert).
   • Alloy steel seats: Overlay weld tungsten carbide after 500 service hours (Importance of the Valve Seat in a Mud Pump).

3. Troubleshooting

   • Seal failure: Upgrade to dual-seat designs with nickel plating for corrosive wells (宝鸡威特朗液压拔阀器阀体阀座F130016002200泥浆泵阀座取出工具).
   • Abrasive wear: Implement daily flushing with citric acid to remove scale (泥浆泵的日常维护).

By following these guidelines, operators can enhance valve seat reliability, reduce downtime, and align with global standards for drilling efficiency and safety.
