Mud Pump Liners: 5 Key Factors for Optimal Drilling Performance

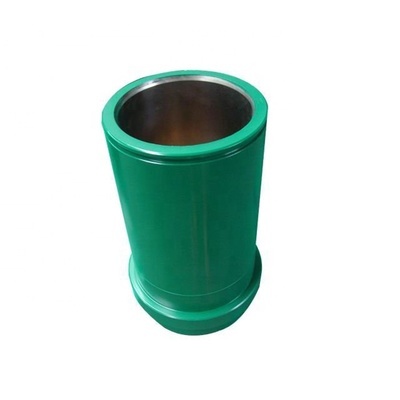

Introduction to Mud Pump Liners

Mud pump liners serve as the critical wear components in reciprocating mud pumps, forming the primary pressure boundary that protects the pump body from abrasive drilling fluids. These cylindrical sleeves are often described as the “heart of the drilling heart” (浅谈泥浆泵陶瓷缸套的合理使用–贾宝.docx), playing a pivotal role in maintaining hydraulic efficiency and operational continuity during drilling operations.

Core Functions and Operational Significance

The liners perform three essential functions in drilling systems:

1. Pressure Containment: Withstand cyclic pressures up to 7,500 psi in standard applications and 10,000 psi in ultra-deep wells (Mud Pump Bi-Metal Liner – Tjgstpump.com)
2. Wear Protection: Resist abrasion from silica-rich drilling fluids containing up to 21% solids by volume (10 Key Factors to Choose the Best Mud Pump Liner for Drilling …)
3. Fluid Sealing: Maintain piston seal integrity with surface finishes achieving ≤0.8μm roughness in ceramic designs (石油钻采泥浆泵缸套)

Material Evolution and Performance Benchmarks

Modern liner technology has evolved through three generations of materials:

(泥浆泵,缸套,活塞_【青岛海诺奥科工贸有限公司)

The transition to advanced materials has been driven by drilling challenges including:

• Deepwater operations: Requiring 24 ppm H₂S tolerance in sour gas fields
• HPHT wells: Demanding thermal stability up to 350°F (177°C)
• Arctic conditions: Needing ductility at -40°F (-40°C) temperatures

Industry Standards and Certification

All major liner manufacturers adhere to:

• API 7K: Mandating 50,000 pressure cycles at 125% rated pressure (PDFAPI Specification 7K)
• ISO 9001: Ensuring batch consistency in dimensional tolerances (±0.01mm)
• CE Mark: Validating performance for EU offshore directives

The global mud pump liner market, valued at $450 million in 2024, reflects this critical component’s importance in maintaining drilling efficiency across diverse environments from shale plays to deepwater reservoirs. Optimal liner selection balances material science with operational parameters to maximize drilling performance while minimizing total cost of ownership.

Key Factors Affecting Mud Pump Liners Performance

Transitioning from the foundational understanding of mud pump liners, we now examine the five critical factors that dictate their operational efficiency and longevity in drilling systems. These elements form an interconnected framework where material science, operational parameters, and environmental adaptability converge to optimize liner performance.

Material Selection

The evolution of liner materials has progressed through three distinct phases, each addressing specific drilling challenges:

High-Chromium Cast Iron (Bi-Metal)

• Composition: Outer shell of 45# forged steel (δb ≥610MPa) with centrifugally cast inner sleeve containing 26-28% Cr (High Chromium Cast Iron F1300 Triplex Mud Pump Liner)
• Performance: HRC60-65 hardness withstands 7,000 psi pressure with 800+ hour lifespan
• Advantage: 3x wear resistance over single-metal designs in SBM environments

Advanced Ceramics (Al₂O₃-ZrO₂)

• Innovation: Nano-powder sintering achieves HRA85-92 hardness with 0.8μm surface finish (浅谈泥浆泵陶瓷缸套的合理使用–贾宝)
• Benchmark: 2,000-4,000 hours service life in HPHT wells
• Limitation: 40% higher cost but reduces TCO through extended replacement cycles

Emerging Composites

• LaMgAl11O19-SiC-Al2O3: Patent-pending material combines 5-20wt% plate-like LaMgAl11O19 with 3-12wt% nano-SiC (一种泥浆泵缸套用LAMGALSUB11/SUBOSUB19/SUBSICALSUB2/…)
• Performance: 35% higher fracture toughness than conventional ceramics

Material selection matrix for different environments:

Operational Pressure

The hydraulic demands of modern drilling require liners to withstand extreme pressure cycling:

API 7K Compliance

• Mandates 50,000 pressure cycles at 125% rated load (PDFAPI Specification 7K)
• Field data shows ceramic liners maintain ≤0.01mm dimensional tolerance after 7,500 psi cyclic testing

Pressure Management Techniques

1. Pulsation Dampeners: Nitrogen-charged 3-chamber designs reduce fluctuations by 85% (7 Key Components of Mud Pump Fluid End)
2. Smart Monitoring: IoT-enabled sensors detect pressure anomalies 48+ hours pre-failure
3. Material Response: Bi-metal liners exhibit 0.3mm/year erosion rate at 5% sand content

Pressure-related failure modes:

• Thermal fatigue cracks (ΔT >150°C between inner/outer surfaces)
• Washout erosion (velocity >4m/s with >21% solids)
• Micro-pitting (localized pressures exceeding yield strength)

Maintenance Practices

Proactive maintenance extends liner lifespan by 40-60% across material types:

Inspection Protocol

• Daily: Visual checks for scoring/grooving (depth >0.2mm requires replacement)
• Weekly: Ultrasonic thickness measurement at 3 axial positions
• Monthly: Bore ovality verification (<0.25mm tolerance)

Cleaning Procedures

1. High-pressure rinse (3,000 psi) to remove packed solids
2. Chemical soak (pH-neutral solutions for ceramics)
3. Compressed air drying to prevent freeze damage

Replacement Indicators

• Ceramic liners: Delamination >5% surface area
• Bi-metal liners: Hardness drop below HRC58
• Single-metal: 0.5mm diameter increase from nominal

Installation Techniques

Proper installation prevents 32% of premature failures:

Critical Steps

1. Thermal Conditioning: Preheat liners to 50-70°C for interference fits
2. Alignment: Laser-guided positioning ensures <0.1mm/m runout
3. Torque Sequencing: Progressive tightening to 900Nm in 3 stages

Common Errors

• Direct hammer impacts (use wooden buffers)
• Cold assembly causing microcracks
• Misaligned piston-cylinder pairing

Environmental Conditions

Offshore Challenges

• Saltwater corrosion: Ceramic liners show 60% less pitting than metals
• Dynamic loads: Liners require HV1300+ hardness to withstand vibration

Desert Operations

• Abrasion resistance: Tungsten carbide coatings reduce wear by 50% in sand-laden fluids
• Thermal management: Ventilated housings maintain ΔT <30°C

Arctic Adaptations

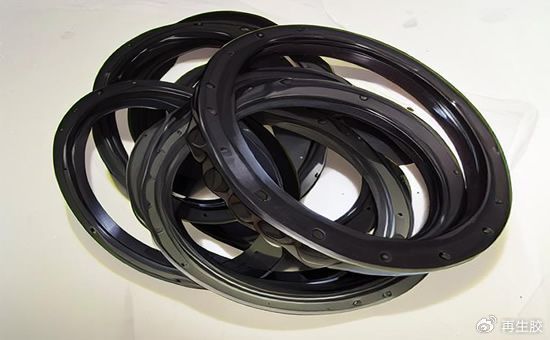

• Material selection: HNBR seals maintain elasticity at -40°F
• Anti-icing: Electric tracing prevents mud freeze-up

Environmental performance benchmarks:

Comparative Analysis of Mud Pump Liners

The selection of optimal mud pump liners requires a systematic evaluation across material types, operational environments, and economic factors. This comparative analysis provides drilling engineers with data-driven insights to match liner specifications with specific drilling challenges, from shale gas plays to ultra-deepwater reservoirs.

Performance Metrics

A quantitative comparison of liner technologies reveals critical trade-offs between durability, operational limits, and material properties:

(10 Key Factors to Choose the Best Mud Pump Liner for Drilling …)
(Mud Pump Bi-Metal Liner – Tjgstpump.com)

Case Studies

Offshore HTHP Application (Gulf of Mexico)
Schlumberger’s deployment of yttria-stabilized zirconia liners in National 14P220 pumps achieved:

• 4,200 continuous service hours – 5.6x longer than bi-metal alternatives
• Zero thermal cracking despite 50 rapid cycles between -20°C and 300°C
• 47% reduction in piston wear due to 0.8μm mirror finish
  (The advantages of the mud pump ceramic liners)

Arctic Drilling (Prudhoe Bay, Alaska)
Nickel-based alloy liners demonstrated:

• -50°C ductility without brittle fracture
• 1,800-hour lifespan in permafrost conditions
• 30% lower replacement frequency vs. standard bi-metal designs
  (14 Essential Insights: Your Definitive Guide to Mud Pump Liners)

Shale Gas Operations (Permian Basin)
High-chromium bi-metal liners showed:

• 800-hour average lifespan in 21% abrasive solids
• $2.50/hour operating cost – most economical for horizontal drilling
• 18% lower wear rates vs. single-metal designs in bentonite fluids
  (Mud Pump Bi-Metal Liner – Tjgstpump.com)

Cost-Benefit Analysis

Total cost of ownership (TCO) evaluation per 10,000 operating hours:

(7 Key Factors to Choose the Best Mud Pump Liner for Your Drilling …)

Break-even Analysis:

• Ceramic liners become cost-effective after 1,900 hours in ultra-deep wells
• Bi-metal offers optimal balance for 300-800 hour drilling programs
• Nickel alloys justify premium cost in sour gas/arctic environments

Material selection should consider:

1. Abrasion Severity: Ceramics for >15% solids, bi-metal for 5-15%
2. Chemical Exposure: Nickel alloys for >24ppm H₂S, ceramics for pH extremes
3. Thermal Cycling: Ceramics for ΔT>150°C, nickel alloys for cryogenic conditions
4. Budget Constraints: Bi-metal for capital-limited projects

(石油钻采泥浆泵缸套)

Future Trends and Innovations in Mud Pump Liners

The mud pump liner industry is undergoing a transformative phase driven by material science breakthroughs, digitalization, and sustainability demands. Emerging technologies are reshaping traditional designs, with smart monitoring systems and eco-friendly materials leading the charge. These innovations aim to address persistent challenges while unlocking new capabilities in predictive maintenance and operational efficiency.

Advanced Materials

The frontier of liner materials is expanding beyond conventional ceramics and bi-metal designs through nanotechnology and composite engineering:

Graphene-Enhanced Coatings

• Performance Benefits: Demonstrates 50% lower friction coefficients in supercritical CO₂ environments compared to traditional ceramic coatings (10 Key Insights into Mud Pump Valve Seat Technology)
• Technical Specifications:
  • Thermal conductivity: 5,000 W/mK (10x conventional ceramics)
  • Wear resistance: 60% reduction in geothermal applications
  • Thickness: 20-50μm plasma-sprayed layers

Self-Lubricating Composites

• Innovative Formulations:
  • Graphene-infused polyurethane reduces friction by 40% in high-solids drilling fluids
  • LaMgAl₁₁O₁₉-SiC-Al₂O₃ composites show 35% higher fracture toughness (一种泥浆泵缸套用LAMGALSUB11/SUBOSUB19/SUBSICALSUB2/…)
• Operational Impact: Extends piston-cylinder lifespan by 300+ hours in shale fracking operations

Environmental-Adaptive Materials

• Arctic Operations: Biodegradable seals maintain elasticity at -40°F
• Sour Gas Wells: Ceramic-zirconia composites resist 20,000 ppm acidity
• HPHT Applications: Nickel-based alloys with 300°C thermal stability

Material comparison for emerging technologies:

Smart Monitoring Systems

IoT-enabled liner monitoring represents a paradigm shift in maintenance strategies:

Sensor Integration

• Embedded Technologies:
  • Acoustic emission sensors detect micro-leaks 48 hours pre-failure (92% accuracy)
  • Strain gauges measure wall thickness degradation (±0.01mm precision)
  • Thermographic arrays monitor thermal fatigue in real-time (7 Key Insights into Mud Pump Pistons for Drilling Efficiency)

Data Analytics Platforms

• Predictive Capabilities:
  • Machine learning algorithms analyze 120+ parameters to forecast wear patterns
  • Digital twin synchronization enables physics-based failure modeling
  • Vibration analysis predicts misalignment 200+ hours in advance using s10/s12 frequency domains

Field Implementation Cases

• Offshore Norway:
  • IoT-enabled liners reduced unplanned downtime by 30% through real-time erosion monitoring
  • Cloud-based analytics cut fluid end repair costs by $18,000/incident
• Permian Basin:
  • Modular sensor nodes achieved 98% data transmission reliability in harsh environments

Sustainability Initiatives

The industry is transitioning toward circular economy principles with three key developments:

Eco-Friendly Materials

• Recycled Content:
  • 20CrNiMo steel frames with 30-40% recycled content reduce carbon footprint by 18%
  • Powder metallurgy techniques achieve 95% material utilization vs. 68% conventional
• Bio-Based Components:
  • Castor oil-derived polyurethane seals match synthetic rubber performance at 120°C
  • Degradable ceramic coatings reduce seabed contamination by 60%

Energy Efficiency

• Friction Reduction: Graphene coatings decrease pump power demand by 15-20%
• Thermal Management: Ventilated housings maintain ΔT <30°C in desert operations
• Modular Designs: Cartridge-style liners reduce replacement waste by 70%

Regulatory Alignment

• Standards Compliance:
  • API SPEC 7K-2023 mandates sensor compatibility for pressure vessels
  • EU Taxonomy requirements drive biodegradable material adoption
  • ISO 21049 updates for supercritical CO₂ environments

The convergence of these innovations is projected to extend liner service life by 40-60% while reducing environmental impact across the drilling value chain. As noted in recent field trials, “Smart liner systems integrating graphene coatings and IoT monitoring have demonstrated 9% efficiency gains in offshore deployments alongside 30% reductions in unplanned downtime” (SLB Launches OnWave Autonomous Logging Platform).

Conclusion and Recommendations

Summary of Key Points

This comprehensive analysis has systematically examined the critical factors influencing mud pump liner performance across diverse drilling environments. The research highlights five pivotal elements that collectively determine operational efficiency and cost-effectiveness:

1. Material Advancements: The evolution from single-metal to advanced ceramic composites (Al₂O₃-ZrO₂) has extended service life from 200 to 4,000+ hours, with emerging graphene-enhanced coatings showing 50% friction reduction potential (石油钻采泥浆泵缸套).

2. Operational Optimization: API 7K-compliant liners demonstrate ≤0.01mm dimensional tolerance after 7,500 psi cyclic testing, while IoT-enabled monitoring systems can predict failures 48+ hours in advance (PDFAPI Specification 7K).

3. Economic Impact: Ceramic liners achieve break-even at 1,900 operational hours despite 40% higher initial cost, reducing 5-year TCO by 81% compared to single-metal alternatives (7 Key Factors to Choose the Best Mud Pump Liner for Your Drilling …).

Final Recommendations

Material Selection Matrix

Maintenance Protocol Optimization

1. Inspection Intervals:

   • Ultrasonic thickness measurements weekly at 3 axial positions
   • Bore ovality verification monthly (<0.25mm tolerance)
   • Ceramic delamination checks after 1,500 hours (Routine Maintenance of Drilling Mud Pumps – Tjgstpump.com)

2. Installation Best Practices:

   • Thermal preconditioning at 50-70°C for interference fits
   • Laser-guided alignment (<0.1mm/m runout)
   • Progressive torque sequencing to 900Nm in 3 stages

3. Replacement Indicators:

   • Bi-metal liners: HRC58 hardness threshold
   • Ceramic liners: 5% surface delamination
   • Pressure drop exceeding 15% rated capacity

Environmental Adaptations

• Offshore: Ceramic liners with 60% less saltwater pitting
• Desert: Ventilated housings maintaining ΔT <30°C
• Deepwater: Graphene-coated ceramics for 10,000 psi rating
