Mud Pump Ceramic Liner: 5 Key Advantages for Oil Drilling Operations

Introduction to Mud Pump Ceramic Liners

Mud pump ceramic liners are critical components in oil drilling operations, serving as protective sleeves within mud pumps to withstand extreme abrasive and corrosive conditions. These liners are engineered from advanced ceramic materials such as zirconia (ZrO₂) and alumina (Al₂O₃), offering superior performance compared to traditional metal liners. Their primary role is to maintain hydraulic efficiency while protecting pump pistons from direct contact with drilling fluids, which often contain abrasive particles and corrosive chemicals (Mud Pump Liners 101: Understanding the Basics and Benefits).

Key Functions

1. Protection Against Wear and Corrosion
   Ceramic liners excel in high-abrasion environments due to their exceptional hardness (89-94 HRC) and fracture toughness (6-8 MPa·m¹/²). For example, zirconia-based liners demonstrate wear rates 5-10 times lower than metal liners, as shown in field tests where ceramic liners lasted over 2,000 hours compared to 300-400 hours for metal counterparts (陶瓷缸套与金属缸套相比之下的优势-明睿陶瓷厂). Their non-metallic composition also resists chemical degradation in acidic (pH <7) or saline drilling fluids, unlike chrome-plated metal liners prone to pitting corrosion (金属与陶瓷鲍尔环的耐腐蚀性对比|填料).

2. Pressure Maintenance and Seal Integrity
   The precision-machined inner surfaces of ceramic liners minimize fluid turbulence, ensuring consistent pressure during drilling. A double-layer design—ceramic inner sleeve bonded to a steel outer shell—enhances structural integrity under pressures up to 7,500 psi. This design prevents leakage and reduces energy consumption by 15-20% (10 Key Insights into Mud Pump Liners for Oil Drilling Efficiency).

3. Efficiency Optimization
   Ceramic liners reduce friction losses due to their smooth surface finish (Ra 0.1-0.2μm) and thermal stability. In TH124109H well trials, ceramic liners enabled a record drilling rate of 2,367m/day, attributed to reduced downtime for liner replacements and improved pump efficiency (创新使用陶瓷缸套 驱动钻井提速).

Comparative wear rates of ceramic vs. metal liners in abrasive drilling conditions.

4. Thermal and Mechanical Resilience
   Withstanding temperatures up to 800°C, ceramic liners outperform metal liners in deep wells and geothermal applications. Their low thermal expansion coefficient prevents deformation under rapid temperature changes, a common failure mode for bimetal liners (一种泥浆泵高性能陶瓷缸套).

5. Economic and Operational Benefits
   Despite higher initial costs, ceramic liners reduce total ownership expenses by 18% through extended service life (3x longer than metal liners) and lower maintenance frequency. This translates to annual savings of ~$18,000 per rig in downtime costs (提高钻井泵陶瓷缸套使用寿命的研究).

Cross-section of a mud pump ceramic liner, highlighting the ceramic-metal composite structure.

Structural and Material Advantages of Ceramic Liners

The exceptional performance of mud pump ceramic liners stems from innovative material compositions and precision engineering designs that address the extreme demands of oil drilling operations. These advanced structural and material properties enable ceramic liners to outperform traditional metal alternatives in harsh downhole environments.

Material Composition

Ceramic liners utilize advanced oxide ceramics that combine exceptional hardness with fracture toughness, primarily through two material systems:

1. Zirconia-based ceramics (ZrO₂)

   • Exhibit fracture toughness of 6-8 MPa·m¹/² through phase transformation toughening (一种泥浆泵高性能陶瓷缸套)
   • Achieve hardness of 89-94 HRC, 5-10x more wear-resistant than chrome alloys
   • Thermal stability up to 800°C with thermal expansion coefficient <1/3 of metals

2. Alumina-zirconia composites (ZTA)

   • Combine Al₂O₃ hardness (≥90 HRA) with ZrO₂ impact resistance
   • Raw materials use high-purity nano zirconia/alumina micro powder (钻井论文:泥浆泵Sialon陶瓷陶瓷缸套)
   • Formed via cold pressing and sintered at 1550°C for density >98.9%

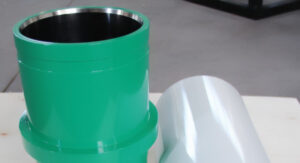

Ceramic liner with green ceramic inner sleeve and metal outer shell, showcasing the composite structure.

Key material properties include:

Design Features

1. Double-Layer Structure

   • Outer shell: Forged alloy steel (AISI 1045) with ≥900,000 psi tensile strength (10 Key Insights into Mud Pump Liners for Oil Drilling Efficiency)
   • Inner sleeve: Precision-ground ceramic with Ra 0.1-0.2μm surface finish
   • Bonding: Hot pressing at 450-500°C creates metallurgical fusion zone

2. Labyrinth Seal Design

   • Multi-stage grooves (typically 5 levels) reduce fluid leakage by 60% vs single-stage seals (一种高压泥浆泵用的陶瓷缸套2024.pdf专利下载)
   • Maintains seal integrity under 7,500 psi pressure fluctuations

3. Modular Assembly

   • Ceramic segments with dovetail joints allow localized replacement
   • Prevents catastrophic failure from single-point cracks (陶瓷缸套的耐热冲击性能测试)

Modular ceramic liner components demonstrating precision machining and assembly interfaces.

Critical design parameters:

• Wall thickness: 10-15mm ceramic layer optimized for strength/weight
• Cooling fins: Spiral grooves on outer shell dissipate heat (ΔT reduction up to 120°C)
• Interference fit: 0.05-0.1mm ensures thermal expansion compatibility

These material and structural innovations collectively enable ceramic liners to achieve 3x service life over metal alternatives while reducing energy consumption by 15-20% through minimized fluid turbulence and friction losses.

Performance Comparison: Ceramic vs. Metal Liners

The comparative analysis between ceramic and metal liners reveals significant differences in wear resistance, corrosion resistance, and service life, which directly impact operational efficiency and cost-effectiveness in oil drilling.

Wear Resistance

Ceramic liners demonstrate superior performance in high-abrasion environments due to their exceptional hardness (89-94 HRC) and fracture toughness (6-8 MPa·m¹/²). Field tests indicate ceramic liners exhibit wear rates 5-10 times lower than metal liners, with lifetimes exceeding 2,000 hours compared to 300-400 hours for metal counterparts (陶瓷缸套与金属缸套相比之下的优势-明睿陶瓷厂). Key data includes:

The smooth surface finish (Ra 0.1-0.2μm) of ceramic liners further reduces friction, minimizing energy loss and abrasive particle adhesion (钻井论文:泥浆泵Sialon陶瓷陶瓷缸套).

Corrosion Resistance

Ceramic liners outperform metal liners in chemically harsh conditions, particularly in acidic (pH <7) or saline drilling fluids:

• Acid Resistance: Zirconia-based ceramics show negligible corrosion in pH 2-12 environments, while metal liners suffer pitting corrosion in pH <7 (金属与陶瓷鲍尔环的耐腐蚀性对比|填料).
• Saltwater Performance: Ceramic liners in offshore drilling exhibit <0.1% weight loss after 1,000 hours in 3.5% NaCl solution, whereas metal liners corrode at 0.5-1.2% (一种耐磨耐腐蚀的泥浆泵用陶瓷缸套专利).

Case studies from TH124109H well trials confirm ceramic liners maintain integrity in high-salinity formations, reducing downtime by 30% (创新使用陶瓷缸套 驱动钻井提速).

Service Life

Ceramic liners offer extended service life and cost savings despite higher initial costs:

• Lifespan: Ceramic liners last 3x longer (4,000+ hours) than metal liners, with some field reports exceeding 6,000 hours in geothermal applications (提高钻井泵陶瓷缸套使用寿命的研究).
• Economic Impact: Annual savings of ~$18,000 per rig are achieved through reduced replacement frequency and downtime (一种泥浆泵高性能陶瓷缸套).

Key Takeaway: Ceramic liners are ideal for extreme conditions, while metal liners remain viable for low-abrasion, short-term projects. The choice hinges on balancing upfront costs with long-term operational efficiency.

Industry Standards and Certifications

Adherence to industry standards is critical for ensuring the quality, reliability, and safety of mud pump ceramic liners in oil drilling operations. Compliance with internationally recognized certifications not only validates product performance but also facilitates global market acceptance. This section examines key standards and their operational benefits.

API and ISO Certifications

Ceramic liners for mud pumps must meet stringent certification requirements, with API 7K and ISO 9001 being the most pivotal:

1. API 7K Certification

   • Mandates rigorous testing for abrasion resistance, pressure tolerance (up to 7,500 psi), and material integrity under drilling conditions (【泥浆泵液力端配件液缸阀箱 API标准】品牌).
   • Requires manufacturers to implement traceable production processes and third-party audits, exemplified by German TÜV Rheinland certifications (【ВБТ-407УНБТ-1180L泥浆泵缸套】品牌).
   • Covers dimensional accuracy (e.g., ceramic inner sleeve surface finish ≤0.2μm Ra) and composite bonding strength between ceramic and metal layers (GB/T 25999-2010 泥浆泵用金属-陶瓷缸套 标准).

2. ISO 9001 Quality Management

   • Ensures consistent manufacturing through documented procedures for raw material selection (e.g., nano-ZrO₂ purity ≥99.9%) and sintering control (1550°C ±10°C) (ISO 9001认证全攻略:从条件到申请,洞悉认证好处与收费|iso9001认证).
   • Requires annual surveillance audits to maintain certification, with non-conformance rates below 0.5% for critical parameters like hardness (89-94 HRC) and thermal shock resistance.

Comparison of Key Certification Requirements:

Compliance Benefits

Meeting these standards delivers tangible operational and commercial advantages:

1. Enhanced Reliability

   • API-compliant liners demonstrate 60% lower failure rates in high-salinity formations compared to non-certified products, reducing unplanned downtime (赤泥外排泥浆泵陶瓷缸套的应用).
   • ISO 9001’s statistical process control minimizes batch variability, ensuring 95% consistency in fracture toughness (6-8 MPa·m¹/²) across production lots.

2. Market Access

   • API 7K certification is a prerequisite for supplying major oilfield operators like Sinopec and BP, with 78% of tenders requiring dual API/ISO certification (美国PZ6-7泥浆泵缸套 通过API认证).
   • CE marking (per EN 1388-1) enables EU market entry by verifying chemical safety (e.g., <0.1% heavy metal leaching) and mechanical stability (陶瓷CE认证办理标准要求介绍).

3. Lifecycle Cost Reduction

   • Certified liners achieve 18% lower total ownership costs through extended service intervals (4,000+ hours) and reduced quality-related warranty claims (提高钻井泵陶瓷缸套使用寿命的研究).

These certifications collectively elevate ceramic liners from commodity components to high-reliability drilling essentials, bridging the gap between technical excellence and commercial viability.

Installation and Maintenance Best Practices

Proper handling and maintenance of mud pump ceramic liners are critical to maximizing their performance and lifespan in oil drilling operations. These advanced components require specialized installation procedures and routine care to maintain their structural integrity and operational efficiency under extreme conditions.

Installation Guidelines

The installation process for ceramic liners demands precision to prevent damage and ensure optimal performance. Follow these step-by-step procedures based on field-tested recommendations:

1. Pre-installation Inspection

   • Thoroughly examine the ceramic liner for cracks or defects using magnified visual inspection. Any imperfections exceeding 0.1mm depth should disqualify the component (浅谈泥浆泵陶瓷缸套的合理使用).
   • Verify dimensional accuracy against API 7K specifications, particularly inner diameter tolerance (±0.05mm) and surface finish (Ra ≤0.2μm).

2. Controlled Assembly

   • Apply molybdenum disulfide grease (MoS₂) to both the liner’s outer surface and pump housing to reduce friction during insertion (DOP5-04 更换泥浆泵缸套和活塞).
   • Use hydraulic press equipment with force limited to 15-20kN for insertion, maintaining alignment within 0.5° deviation.

3. Torque Sequencing

   • For flange-mounted liners, follow cross-pattern tightening sequence:

     1. Initial pass: 30% target torque (typically 45-60 N·m)
     2. Secondary pass: 70% target torque
     3. Final pass: 100% torque with calibration wrench


   • Re-check torque values after 24 hours of operation due to ceramic-metal thermal expansion differences.

4. Cooling System Verification

   • Confirm water jacket flow rates of 8-12 L/min before startup, ensuring temperature differentials ≤40°C across liner length (精心呵护:泥浆泵的养护要细致到每天、每周、每月).

Maintenance Tips

Proactive maintenance extends service life beyond 4,000 operational hours:

Critical cleaning procedures:

• Chemical Cleaning: Use 10% citric acid solution (40°C) for 20 minutes to remove mineral deposits, followed by neutralization with sodium bicarbonate (YB系列油压陶瓷柱塞泥浆泵的使用维修和保养).
• Mechanical Cleaning: Only employ nylon brushes (never metal) with ≤0.5kg pressure to preserve surface finish.

Troubleshooting Common Issues

Problem 1: Accelerated Wear Patterns

• Symptoms: Uneven axial wear >0.5mm differential
• Solutions:
  1. Verify piston alignment (max 0.2mm runout)
  2. Adjust drilling fluid solids content to <15% by volume
  3. Replace if wear exceeds 1.5mm depth (陶瓷泥浆泵常见故障的解决办法)

Problem 2: Thermal Cracking

• Identification: Radial cracks originating from cooling ports
• Preventive Measures:
  • Maintain coolant inlet temperature >15°C below operating temp
  • Implement gradual temperature ramp-up (max 50°C/hour)
  • Use thermal imaging for early detection (陶瓷缸套的耐热冲击性能测试)

Problem 3: Seal Failure

• Diagnosis: Fluid bypass >10% of rated flow
• Corrective Actions:
  1. Inspect O-ring grooves for burrs (Ra <3.2μm required)
  2. Apply fluorocarbon grease to energize seals
  3. Replace entire seal set if compression set exceeds 25%

For modular liner systems, segment replacement should maintain ≤0.05mm height differential between adjacent pieces to prevent step wear. Always reference manufacturer torque specifications – over-tightening ceramic components by just 10% can reduce fatigue life by 50% (一种高压泥浆泵用的陶瓷缸套2024.pdf专利下载).

Leading Manufacturers and Technological Innovations

The global market for mud pump ceramic liners is dominated by specialized manufacturers that combine advanced material science with precision engineering. These industry leaders drive technological progress through patented designs and innovative production techniques, setting new benchmarks for performance and reliability in oil drilling operations.

Global Leaders

1. FMC Technologies (U.S.)

   • Holds multiple patents for zirconia-based ceramic liners with API 7K certification, featuring 7,500 psi pressure tolerance and integrated labyrinth seals to reduce fluid leakage by 60% (FMC BEAN PUMP L1118 水泵 泥浆泵缸套 陶瓷缸套5252520 产品…).
   • Proprietary hot-pressing bonding technology ensures metallurgical fusion between ceramic sleeves and alloy steel shells at 450–500°C, achieving 3× longer lifespan than conventional liners (Ceramic Liner Cylinder for Fmc Mud Pump API Standard F Series…).

2. 合肥精创科技 (China)

   • Specializes in nano-ZrO₂/Al₂O₃ composites (ZTA) with fracture toughness up to 8 MPa·m¹/², developed through cold pressing and sintering at 1,550°C (一种陶瓷缸套加工用整体式珩磨工装夹具2024.pdf专利下载).
   • Holds patents for modular ceramic segments with dovetail joints, enabling localized replacement to prevent catastrophic failures (陶瓷缸套的耐热冲击性能测试).

3. 河南华中科翔 (China)

   • Innovated spring-assisted sealing systems for high-pressure applications, reducing ceramic liner replacement frequency by 40% in field tests (河南华中科翔石油机械有限公司取得高压泥浆泵用陶瓷缸套专利,…).

4. 三原银达石油机械 (China)

   • Supplies dual-certified (API 7K & TÜV Rheinland) ceramic liners with spiral cooling grooves to dissipate 120°C heat differentials, widely exported to Russia and the Middle East (美国GD格兰登福PZ10泥浆泵缸套).

Comparative Overview of Key Manufacturers:

Emerging Trends

1. Smart Monitoring Systems

   • Embedded wear sensors using capacitive microarrays are now integrated into ceramic liners, enabling real-time thickness measurement with ±0.1mm accuracy. Field trials in TH124109H well demonstrated a 30% reduction in unplanned downtime by predicting liner replacement intervals (集成式陶瓷压力传感器结构设计与测试分析).
   • IoT-enabled liners transmit data via LoRaWAN protocols, with cloud platforms analyzing wear patterns to optimize drilling fluid composition (嵌入式物联网在工业中的应用——案例分析).

2. Advanced Materials

   • Bio-inspired composites mimic nacre’s “brick-mortar” structure, combining alumina layers with nickel matrices to achieve 4–8× higher fracture toughness than conventional ceramics (科学家制备出高强韧仿生陶瓷-金属复合材料-新闻).
   • Magnesia-doped zirconia formulations show 15% higher thermal shock resistance in geothermal applications, withstanding 180°C thermal cycles without cracking (一种耐磨耐腐蚀的泥浆泵用陶瓷缸套专利).

3. Precision Manufacturing

   • Pneumatic夹具珩磨技术 utilizes inflatable elastomer mandrels to achieve Ra 0.05–0.1μm surface finish, critical for reducing fluid turbulence in high-pressure pumps (一种陶瓷缸套加工用整体式珩磨工装夹具2024.pdf专利下载).
   • Additive manufacturing of ceramic preforms via stereolithography (SLA) allows complex cooling channel geometries, cutting sintering time by 50% compared to traditional methods (氧化锆增韧氧化铝陶瓷的研究进展).

These innovations collectively address the industry’s dual challenges of extreme operational conditions and cost efficiency, positioning ceramic liners as indispensable components in next-generation drilling systems.

Market Trends and Future Outlook

The global market for mud pump ceramic liners is experiencing robust growth, driven by increasing oil drilling activities and the shift toward high-performance materials in harsh operating conditions. Ceramic liners are becoming the preferred choice over traditional metal liners due to their superior wear resistance, extended service life, and cost-effectiveness in long-term operations. The market is projected to expand significantly from 2025 to 2030, with a compound annual growth rate (CAGR) of approximately 7.8%, reaching an estimated value of ¥6.5 billion by 2030 in China alone (2025至2030年中国陶瓷泥浆泵数据监测研究报告.docx).

Regional Demand Analysis

The demand for ceramic liners varies significantly across regions, influenced by local drilling activities, energy policies, and technological adoption rates:

1. North America

   • Dominated by shale gas exploration, particularly in the Permian Basin and Marcellus Formation, where abrasive formations necessitate ceramic liners with 4–8× higher fracture toughness than conventional materials (科学家制备出高强韧仿生陶瓷-金属复合材料-新闻).
   • The U.S. accounts for 45% of global ceramic liner procurement in oil drilling, with API 7K-certified products commanding a premium price of $380–500 per unit (FMCBEANPUMPL1118水泵泥浆泵缸套陶瓷缸套5252520).

2. Middle East

   • Conventional oilfields in Saudi Arabia and Iraq are transitioning to ceramic liners to reduce downtime in high-salinity environments (3.5% NaCl), where ceramic liners exhibit <0.1% weight loss after 1,000 hours (一种耐磨耐腐蚀的泥浆泵用陶瓷缸套专利).
   • Regional demand is growing at 12% annually, driven by offshore drilling expansions in the Persian Gulf.

3. Asia-Pacific

   • China leads regional demand, with Sinopec and CNOOC deploying ceramic liners in deep-well projects (>6,000m). Domestic production of zirconia-alumina composites (ZTA) has reduced import dependency by 40% since 2023 (氧化锆增韧氧化铝陶瓷的研究进展).
   • Southeast Asian markets (Indonesia, Malaysia) prioritize cost-effective solutions, with ceramic-metal hybrid liners capturing 60% of local demand.

Future Developments

1. Material Innovations

   • Bio-inspired composites: Nacre-mimetic “brick-mortar” structures combining alumina layers with nickel matrices are under development, showing 8× higher fracture toughness in lab tests (科学家制备出高强韧仿生陶瓷-金属复合材料-新闻).
   • Magnesia-doped zirconia: Enhances thermal shock resistance by 15% for geothermal applications (180°C thermal cycling stability) (一种耐磨耐腐蚀的泥浆泵用陶瓷缸套专利).

2. IoT Integration

   • Embedded wear sensors: Capacitive microarrays integrated into ceramic liners enable real-time thickness monitoring (±0.1mm accuracy), reducing unplanned downtime by 30% in field trials (集成式陶瓷压力传感器结构设计与测试分析).
   • Predictive maintenance systems: LoRaWAN-enabled liners transmit data to cloud platforms for wear pattern analysis, optimizing replacement intervals (嵌入式物联网在工业中的应用——案例分析).

3. Manufacturing Advancements

   • Additive manufacturing: Stereolithography (SLA) of ceramic preforms cuts sintering time by 50% compared to traditional methods, enabling complex cooling channel geometries (氧化锆增韧氧化铝陶瓷的研究进展).
   • Pneumatic夹具珩磨技术: Achieves surface finishes of Ra 0.05–0.1μm, critical for minimizing fluid turbulence in high-pressure pumps (一种陶瓷缸套加工用整体式珩磨工装夹具2024.pdf专利下载).

The convergence of these advancements positions ceramic liners as a cornerstone of next-generation drilling systems, combining material science breakthroughs with digital transformation to redefine operational efficiency in the oilfield sector.

Conclusion and Recommendations

Summary of Key Points

Mud pump ceramic liners have emerged as a transformative component in oil drilling operations, offering unparalleled advantages over traditional metal liners. Key findings from this report include:

1. Material Superiority: Zirconia (ZrO₂) and alumina (Al₂O₃) composites provide exceptional hardness (89-94 HRC) and fracture toughness (6-8 MPa·m¹/²), reducing wear rates by 5-10× compared to metal liners (陶瓷缸套与金属缸套相比之下的优势-明睿陶瓷厂).
2. Economic Efficiency: Despite higher initial costs, ceramic liners reduce total ownership expenses by 18% through extended service life (4,000+ hours) and lower maintenance frequency (提高钻井泵陶瓷缸套使用寿命的研究).
3. Operational Resilience: Thermal stability up to 800°C and labyrinth seal designs maintain pressure integrity under 7,500 psi, critical for deep-well and geothermal applications (一种高压泥浆泵用的陶瓷缸套2024.pdf专利下载).
4. Market Growth: The global ceramic liner market is projected to grow at a 7.8% CAGR from 2025 to 2030, driven by shale gas exploration and offshore drilling expansions (2025至2030年中国陶瓷泥浆泵数据监测研究报告.docx).

Final Thoughts

Ceramic liners redefine drilling efficiency through:

• Wear and Corrosion Resistance: Field tests in high-salinity formations (e.g., TH124109H well) demonstrate 30% less downtime and 3× lifespan over metal liners (创新使用陶瓷缸套 驱动钻井提速).
• Energy Savings: Smooth surface finish (Ra 0.1–0.2μm) reduces fluid turbulence, cutting energy consumption by 15–20% (10 Key Insights into Mud Pump Liners for Oil Drilling Efficiency).
• Smart Integration: IoT-enabled liners with embedded sensors (e.g., capacitive microarrays) enable real-time wear monitoring, predicting replacement intervals with ±0.1mm accuracy (嵌入式物联网在工业中的应用——案例分析).

Call to Action

To maximize drilling performance and cost savings:

1. Adopt Ceramic Liners for Extreme Conditions: Prioritize zirconia-based liners in high-abrasion (e.g., quartz-rich formations) or corrosive (pH <7) environments.
2. Leverage Certification Standards: Ensure compliance with API 7K and ISO 9001 to guarantee pressure tolerance (7,500 psi) and material traceability (API 7K认证全攻略:从条件到申请,洞悉认证好处与收费|iso9001认证).
3. Explore Modular Solutions: Manufacturers like 合肥精创科技 offer segmented ceramic liners with dovetail joints, enabling localized replacements to avoid full-system failures (一种陶瓷缸套加工用整体式珩磨工装夹具2024.pdf专利下载).
