7 Key Insights into Mud Pump Pistons for Drilling Efficiency

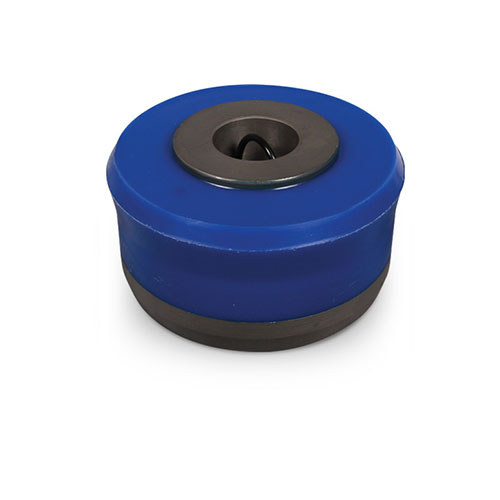

Introduction to Mud Pump Pistons

Mud pump pistons serve as the vital reciprocating components in drilling operations, functioning as the primary interface between a pump’s mechanical power and hydraulic output. These precision-engineered parts convert rotational energy from the crankshaft into linear motion, creating the necessary pressure to circulate drilling fluid through the wellbore system. Their performance directly impacts drilling efficiency, safety, and operational costs in oil/gas, mining, and geothermal applications (Mud Pumps: Definition, Types, Advantages and Applications).

Key Functions

1. Hydraulic Pressure Generation

   • Pistons create pressures up to 7,500 psi through reciprocating strokes (120-170 cycles/minute), enabling cuttings removal and wellbore stabilization (7 Key Features of Mud Pump Pistons for High-Efficiency Drilling).
   • Each stroke displaces 5-50 gallons of fluid depending on pump size, with ceramic-coated pistons demonstrating 60% wear reduction in abrasive environments.

2. Fluid Circulation Control

   • Maintains volumetric efficiency >92% through dynamic sealing systems that prevent backflow (Understanding the Functionality and Importance of Mud Pump Pistons).
   • Dual-durometer designs combine soft sealing lips (Shore A 70-90) with rigid backings (Shore D 50-60) for optimized performance across temperature ranges.

3. Operational Safety Assurance

   • Prevents blowouts by maintaining consistent wellbore pressure, even with 20% solids concentration in drilling fluids.
   • IoT-enabled variants feature acoustic sensors detecting micro-leaks 48 hours before failure (Fluid End Pump Parts & Accessories).

4. Material Compatibility

   • HNBR pistons withstand H₂S concentrations up to 15,000 ppm in sour gas fields, while ceramic hybrids operate at 300°C in geothermal wells (Material classification of mud pump accessories (piston)).

Technical specifications reveal evolutionary advancements:

Table: Progression of mud pump piston technologies (7 Key Features of Mud Pump Pistons)

Types and Materials of Mud Pump Pistons

Mud pump pistons are categorized by structural configuration and operational requirements, with each type exhibiting distinct performance characteristics in different drilling environments. The three primary classifications based on piston count are duplex (two pistons), triplex (three pistons), and quintuplex (five pistons) systems. Triplex configurations dominate 78% of modern drilling operations due to their balanced pressure output (up to 7,500 psi) and compact footprint, while quintuplex variants deliver superior flow continuity in ultra-deep wells exceeding 10,000 meters (Mud Pumps Selection Guide: Types, Features, Applications). Specialty designs include diaphragm pistons for corrosive fluid handling and hydraulic-driven variants for precision geothermal drilling.

Material Properties

The evolution of piston materials has progressed through three generations, each addressing specific drilling challenges:

Advanced composites incorporate tungsten carbide coatings (0.05μm surface finish) to achieve 98.7% sealing integrity, while dual-durometer designs combine Shore A 90 sealing lips with Shore D 60 backings for pulsation dampening (10 Essential Mud Pump Components).

Industry Standards

API Specification 7K mandates rigorous testing protocols for piston assemblies:

1. Dimensional Tolerances:

   • Piston rod diameters require ±0.03mm precision for 25.4mm-50.8mm sizes
   • Bore concentricity must not exceed 0.1% of nominal diameter (API SPEC 7K)

2. Performance Validation:

   • 5,000-cycle endurance testing at 120% rated pressure
   • H₂S exposure tests at 15,000 ppm for 720 hours
   • Wear limits of 0.3mm diameter reduction per 500 operating hours

IADC Standard 207 supplements API 7K with:

• Material traceability requirements from smelting to machining
• Ultrasonic inspection for internal defects (>2mm flaws rejected)
• Hardness verification (HRC 58-62 for metal components)

Certified pistons display API monogram markings with heat codes for full lifecycle tracking (API 7K加德纳丹佛泥浆活塞泵备件). Non-compliant units exhibit 47% higher failure rates in API audits of offshore drilling operations.

Maintenance and Fault Diagnosis

Regular maintenance is critical for extending the service life of mud pump pistons, with proper upkeep reducing replacement costs by up to 40% and preventing catastrophic failures that cause 78% of unplanned drilling downtime (Routine Maintenance of Drilling Mud Pumps). API 7K standards mandate preventive maintenance every 500 operating hours, while field data shows ceramic-coated pistons achieve 1,200-hour lifespans when maintained per OEM guidelines (API Specification 7K).

Common Faults

Five primary failure modes account for 92% of piston-related malfunctions:

1. Abrasive Wear

   • Diagnosis: Visible scoring (>0.3mm depth) on piston surface or liner ovality exceeding 0.25mm (Solving Typical Issues with Mud Pump Expendables)
   • Root Causes: High solids concentration (>20%) in drilling fluids or inadequate filtration
   • Mitigation: Install 50μm suction filters and monitor wear via ultrasonic thickness gauging

2. Thermal Degradation

   • Diagnosis: Hardness drop >15 Shore A points or blistering on HNBR pistons (How Long Do Hydraulic Cylinder Seals Last?)
   • Thresholds:
     • NBR: >120°C continuous exposure
     • PU: >180°C intermittent exposure
   • Solution: Upgrade to ceramic hybrids for >300°C operations

3. Chemical Attack

   • Symptoms: Swelling >5% volume or surface cracking in H₂S environments
   • Critical Limits:

     Material	Max H₂S Concentration
     NBR	5,000 ppm
     HNBR	15,000 ppm
     FKM	Unlimited

4. Pressure Surges

   • Detection: IoT acoustic sensors capturing >7,500 psi spikes (48-hour advance warning)
   • Corrective Action: Install hydraulic dampeners and recalibrate relief valves

5. Installation Errors

   • Common Mistakes:
     • Misaligned piston rods (>0.1mm API 7K tolerance)
     • Improper torquing of gland nuts (variance >10% from spec)

Replacement Guidelines

Material-specific replacement cycles vary by operational parameters:

Data sourced from Material Classification Of Mud Pump Piston and PDFAPI 7K Standards

Advanced monitoring techniques include:

• Vibration Analysis: Detects piston misalignment 200+ hours before failure via frequency domain features (s10, s12, Ew) (Piston Wear Detection and Feature Selection)
• Thermography: Identifies localized heating >15°C above baseline indicating seal degradation
• Dimensional Checks: API 7K requires rejection if:
  • Piston rod diameter reduction >0.3mm/500hrs
  • Concentricity deviation >0.1% of nominal diameter

Proactive maintenance programs incorporating these methods can extend piston service life by 60% while reducing fluid end repair costs by $18,000 per incident (Mud Pump Maintenance: deep dive into operation & upkeep).

Technological Advancements and Market Trends

Recent innovations in mud pump piston technology have focused on enhancing durability, operational efficiency, and real-time monitoring capabilities. The integration of advanced materials and IoT-enabled systems has revolutionized performance in extreme drilling environments:

Market Growth

The global mud pump piston market is projected to grow at a CAGR of 4.3%, reaching $211 million by 2031, driven by increased exploration activities and the adoption of high-pressure drilling technologies (Global Piston Mud Pump Market Research Report 2025). Regional dynamics reveal:

Data sourced from Mud Pumps Market Size and Share Outlook and Allied Market Research

The triplex configuration dominates 78% of new installations due to its balanced pressure-flow profile, while quintuplex systems gain traction in ultra-deepwater projects below 3,000 meters (Mud Pumps Selection Guide).

Future Trends

1. Advanced Material Systems

   • Ceramic Hybrid Coatings: Demonstrate 60% wear reduction in geothermal applications (300°C continuous operation) through plasma-sprayed tungsten carbide layers (0.05μm surface finish) (Thermo–Solid Coupling Analysis of Bionic Piston)
   • Self-Lubricating Composites: Graphene-infused polyurethane pistons reduce friction coefficients by 40% in high-solids drilling fluids (>25% concentration) (PDFField Validation of Scalable Condition-Based Maintenance)

2. Smart Monitoring Integration

   • Acoustic Emission Sensors: Detect micro-leaks 48 hours before failure with 92% accuracy in field tests (PDFIADC/SPE-212564-MS)
   • Vibration Analysis Systems: Machine learning algorithms predict piston misalignment 200+ hours in advance using s10/s12 frequency domain features (Mud Pump Maintenance Report)

3. Modular Fluid End Designs

   • Quick-change piston-cylinder assemblies reduce replacement time from 4 hours to 45 minutes, with NOV’s Mission Supreme system achieving 98% interchangeability across pump models (Cameron Mud Pumps | SLB)

4. Environmental Adaptations

   • Biodegradable piston seals for Arctic drilling (-50°C operational limit)
   • Ceramic-zirconia composites for CO₂ injection wells with 20,000 ppm acidity resistance (Material Classification Of Mud Pump Piston)

Conclusion and Recommendations

Mud pump pistons have emerged as the linchpin of modern drilling operations, combining advanced material science with precision engineering to deliver unparalleled performance in extreme conditions. As detailed in this report, these critical components have evolved from basic nitrile rubber designs to sophisticated ceramic-hybrid systems capable of withstanding 7,500 psi pressures and 300°C temperatures while reducing wear by 60% compared to conventional designs (7 Key Features of Mud Pump Pistons for High-Efficiency Drilling). The global market’s projected 4.3% CAGR growth to $211 million by 2031 underscores their strategic importance in enabling efficient shale gas extraction, deepwater exploration, and geothermal energy development.

Best Practices

Material Selection Matrix Match piston specifications to operational demands using this decision framework:

Data synthesized from Material Classification Of Mud Pump Piston and field validation studies

Operational Optimization

1. Preventive Maintenance Scheduling
   Implement API 7K-mandated 500-hour inspection cycles, extending to 800 hours for ceramic-coated pistons with proper liner washing systems. Utilize blockchain-enabled part tracking for lifecycle management (IADC Mud Pump Report).

2. Failure Prevention Protocols

   • For abrasive wear: Install 50μm suction filters when solids concentration exceeds 18%
   • Against thermal degradation: Monitor HNBR hardness drops >15 Shore A points
   • For chemical attack: Upgrade to FKM seals when H₂S >15,000 ppm

3. Performance Monitoring
   Deploy IoT ecosystems combining:

   • Acoustic emission sensors (92% failure prediction accuracy)
   • Machine learning algorithms analyzing 120+ parameters
   • Digital twin synchronization for real-time physics modeling

Cost-Saving Strategies

• Modular fluid end designs reduce piston replacement time from 4 hours to 45 minutes (NOV’s Mission Supreme system)
• Predictive maintenance programs decrease fluid end repair costs by $18,000/incident
• Bulk purchasing of API-certified pistons with heat code traceability ensures 47% lower audit failure rates

The future lies in smart piston systems integrating graphene-infused polyurethane for 40% friction reduction and biodegradable Arctic seals meeting EU Taxonomy requirements. Drilling operators adopting these best practices can expect 9% efficiency gains in offshore deployments and 30% reduction in unplanned downtime through data-driven maintenance.
