Introduction: The Importance of Mud Pump Liners in Modern Drilling Operations

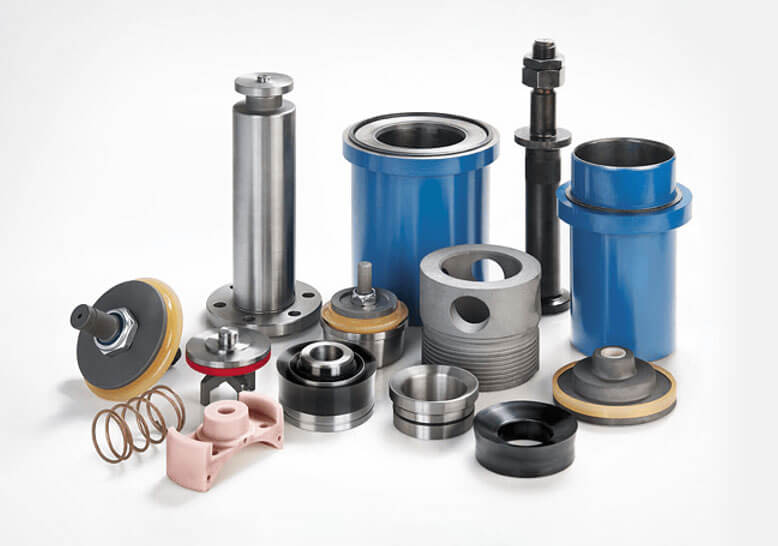

Mud pump liners, also known as cylinder liners, are critical components of mud pumps in drilling operations, serving as the core accessories that store mud, bear pressure, and facilitate the suction and discharge of drilling fluids. As the heart of the mud pump’s fluid end, these liners are subjected to extreme conditions, including high pressure, abrasive materials, and corrosive chemicals, making their performance and durability essential for maintaining efficient and cost-effective drilling operations.
In today’s demanding drilling environments, from deep oil reservoirs to offshore platforms, selecting the right mud pump liners can significantly impact operational efficiency, equipment lifespan, and overall project profitability. High-quality mud pump liners not only enhance performance but also reduce downtime, lower maintenance costs, and improve safety standards in the field. This comprehensive guide explores the key advantages of premium mud pump liners and provides actionable insights for engineers and procurement managers looking to optimize their drilling operations.
Material Excellence: Advanced Materials Redefining Mud Pump Liner Performance
2.1 Zirconia Ceramic Liners: The Gold Standard for Extreme Conditions
Zirconia ceramic mud pump liners represent the pinnacle of material technology in the drilling industry. Thanks to zirconium’s extreme hardness and thermal resilience, these liners provide superior protection against wear, corrosion, and thermal stress, making them the ideal choice for high-demand drilling projects where reliability is critical.

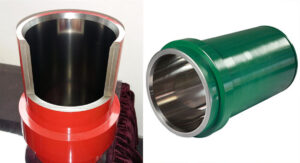

Zirconia ceramic liners are constructed with a ceramic inner sleeve and a forged steel outer shell, combining the exceptional properties of ceramic with the structural integrity of steel. The result is a liner that can withstand the harshest drilling conditions while maintaining optimal performance over an extended service life.
2.2 High Chrome Iron Liners: Balancing Durability and Cost
For applications where extreme conditions are not the norm, high chrome iron liners offer an excellent balance of performance and cost-effectiveness. These liners feature a centrifugally forged high-quality carbon steel outer shell, with tensile strength exceeding 610 MPa, yield strength exceeding 450 MPa, and elongation exceeding 17%, providing exceptional structural integrity.
The inner sleeve of high chrome iron liners is made from high chrome iron alloy, which achieves hardness levels of HRC 62 or higher after heat treatment. This high hardness ensures excellent wear resistance, making high chrome iron liners a reliable choice for many drilling applications.
2.3 Bimetal Liners: Combining Strength and Wear Resistance
Bimetal mud pump liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a high chromium iron inner sleeve. This combination offers a cost-effective solution that performs well in a variety of drilling environments.
Bimetal liners typically feature a forged steel outer shell made from AISI 1050 (50#) steel, providing the necessary structural support, while the inner sleeve is constructed from high chromium cast iron with a chromium content of 26-28%, ensuring excellent wear resistance.
Performance Advantages: How Premium Liners Outperform Standard Options
3.1 Exceptional Wear Resistance for Extended Service Life
One of the most significant advantages of high-quality mud pump liners is their exceptional wear resistance. Ceramic liners, in particular, demonstrate superior performance in this area, with zirconia ceramic liners offering significantly better wear resistance than traditional alumina ceramic liners.
The wear resistance of mud pump liners is directly related to their hardness. Ceramic liners achieve hardness levels of 89-94 on the Rockwell scale, while high chrome iron liners typically range between 60-67 Rockwell C, and standard steel liners measure 58-62 Rockwell C. This increased hardness translates directly to reduced wear and longer service life.
3.2 Superior Corrosion and Chemical Resistance
In addition to wear resistance, premium mud pump liners offer superior protection against corrosion and chemical attack. This is particularly important in environments where drilling fluids may contain aggressive chemicals or where exposure to saltwater or other corrosive elements is a concern.
Zirconium-based ceramic liners provide exceptional corrosion resistance due to zirconium’s extreme hardness and thermal resilience, making them the ideal choice for high-demand drilling projects where reliability is critical. Similarly, high chrome iron liners offer excellent resistance to chemical attack, with a pH range tolerance of 7.5-10.2.
3.3 Thermal Stability in Extreme Temperatures
Modern drilling operations often encounter extreme temperature variations, from freezing conditions at the surface to high temperatures deep underground. High-quality mud pump liners are designed to maintain their performance across this wide range of temperatures.
Ceramic liners, in particular, exhibit excellent thermal stability, allowing them to perform consistently even in high-temperature environments. Some ceramic liners are rated for continuous operation at temperatures up to 350°F (177°C), making them suitable for high-temperature applications.
3.4 Enhanced Pressure Handling Capabilities
The ability to withstand high pressures is another critical advantage of premium mud pump liners. Depending on the material and design, high-quality liners can handle pressure ratings up to 7,500 psi, significantly higher than standard liners.
For example, ceramic liners typically have a pressure rating of up to 7,500 psi, while high chrome iron liners can handle pressures up to 7,500 psi as well. Standard steel liners, by comparison, are typically rated for pressures up to 5,000 psi. This increased pressure handling capability allows for more efficient and effective drilling operations.
Operational Benefits: Improving Drilling Efficiency and Reducing Costs
4.1 Extended Service Life Reduces Downtime and Replacement Costs
Perhaps the most significant operational benefit of high-quality mud pump liners is their extended service life. Ceramic liners, in particular, offer a service life of 4,000 to 10,000 hours, with a minimum of at least 2,000 hours, which is significantly longer than traditional bimetal liners.
This extended service life directly translates to reduced downtime for liner replacements and lower overall replacement costs. In contrast, standard liners may need to be replaced every 800-1,000 hours, creating significant downtime and replacement costs.
4.2 Reduced Maintenance Requirements
Premium mud pump liners also require less maintenance than standard options, further reducing downtime and operational costs. Thanks to their superior wear and corrosion resistance, high-quality liners experience less degradation over time, meaning fewer inspections and maintenance interventions are needed.
For example, liners with proprietary hard surface coatings like Merri Loy offer exceptional resistance to rust and corrosion, even when pumps sit idle, reducing the need for protective coatings and treatments during periods of inactivity.
4.3 Improved Drilling Fluid Performance
High-quality mud pump liners can also improve the performance of drilling fluids by maintaining optimal flow characteristics and reducing turbulence. The precision machining of premium liners ensures a smooth internal surface, which helps maintain consistent fluid flow and reduces the risk of blockages or pressure drops.
The inside diameter of premium liners is typically honed to a mirror-like finish, which promotes smooth, even wear during the life of the liner and helps maintain consistent performance over time.
4.4 Enhanced Energy Efficiency
Premium mud pump liners can also contribute to improved energy efficiency in drilling operations. The smooth internal surface of high-quality liners reduces friction between the piston and the liner, which in turn reduces energy consumption and wear on both the liner and the piston.
Additionally, the extended service life of premium liners means fewer replacements are needed, reducing the energy and resources required for manufacturing and transporting replacement parts.
Environmental and Safety Benefits: Sustainable and Safe Drilling Operations
5.1 Reduced Environmental Impact
High-quality mud pump liners contribute to more sustainable drilling operations by reducing waste and resource consumption. The extended service life of premium liners means fewer liners need to be manufactured, transported, and disposed of, reducing the environmental footprint of drilling operations.
Additionally, the improved efficiency of high-quality liners can reduce energy consumption during drilling operations, further minimizing the environmental impact.
5.2 Enhanced Safety in Harsh Environments
Premium mud pump liners also enhance safety by reducing the risk of unexpected failures in harsh drilling environments. The superior durability and reliability of high-quality liners mean fewer unplanned shutdowns and less risk of equipment failure in challenging conditions.
For example, ceramic liners are particularly well-suited for offshore drilling operations, where equipment failure can have severe consequences. Their ability to withstand extreme conditions ensures reliable performance in even the most challenging offshore environments.
5.3 Compliance with Stringent Environmental Regulations
In today’s regulatory environment, compliance with environmental standards is essential for drilling operations. High-quality mud pump liners can help ensure compliance by reducing the risk of leaks and spills, which can have serious environmental and regulatory consequences.
Additionally, some premium liners are designed to be more environmentally friendly, with materials and manufacturing processes that meet or exceed current environmental standards.
Choosing the Right Mud Pump Liner for Your Needs
6.1 Matching Liner Type to Drilling Conditions
Selecting the right mud pump liner for your application requires careful consideration of the specific drilling conditions and operational requirements. Factors such as drilling depth, geological conditions, and the composition of drilling fluids all play a significant role in determining the best liner type.
For shallow wells or projects with budget constraints, bimetal liners may suffice. However, for deep wells or operations involving abrasive or corrosive fluids, ceramic liners are more suitable. Additionally, different models of mud pumps require compatible liners that match precisely in size and design to ensure optimal performance.
6.2 Material Selection Based on Operational Requirements
The choice of liner material should be based on the specific operational requirements of your drilling project. Key considerations include the type of drilling fluid being used, the expected pressure and temperature conditions, and the level of abrasion and corrosion resistance needed.
Zirconium ceramic liners offer the highest level of performance across all these factors, making them ideal for the most demanding applications. However, they also come with a higher upfront cost. For less demanding applications, high chrome iron or bimetal liners may provide sufficient performance at a lower cost.
6.3 Importance of Proper Installation and Maintenance
Proper installation and maintenance are essential for maximizing the performance and service life of mud pump liners. When installing liners, it’s important to follow manufacturer guidelines carefully to ensure proper fit and alignment.
Regular inspection and maintenance are also critical. Operators should establish a regular inspection schedule to monitor liner wear and performance. Timely replacement of worn liners is essential, as continued use of degraded liners can lead to reduced performance and increased wear on other pump components.
Future Trends in Mud Pump Liner Technology
7.1 Advancements in Material Science
The future of mud pump liners lies in continued advancements in material science. Research is ongoing into new materials and composite structures that can offer even better performance than current options.
For example, zirconium-based materials are already being used to create liners with exceptional hardness and thermal resilience, providing superior protection against wear, corrosion, and thermal stress. As these technologies evolve, we can expect to see even more durable and high-performing liners in the future.
7.2 Integration with Digital Monitoring Systems
Another emerging trend is the integration of mud pump liners with digital monitoring systems. These systems can provide real-time data on liner performance, wear rates, and remaining service life, allowing for more precise maintenance scheduling and replacement planning.
This digital integration enables predictive maintenance, where liners are replaced based on actual wear patterns rather than arbitrary schedules, further optimizing performance and reducing costs.
7.3 Increased Focus on Sustainability
As environmental concerns continue to grow, there is an increasing focus on sustainability in mud pump liner design and manufacturing. This includes the development of more environmentally friendly materials, energy-efficient manufacturing processes, and liners that can be recycled or reused at the end of their service life.
Manufacturers are also exploring ways to reduce the environmental impact of liners throughout their lifecycle, from raw material extraction to end-of-life disposal.
Conclusion: Investing in High-Quality Mud Pump Liners for Long-Term Success
In conclusion, high-quality mud pump liners offer numerous advantages that can significantly improve the efficiency, reliability, and cost-effectiveness of drilling operations. From their exceptional wear and corrosion resistance to their extended service life and improved pressure handling capabilities, premium liners provide substantial benefits across all aspects of drilling performance.
While the upfront cost of high-quality liners may be higher than standard options, the long-term savings in reduced downtime, maintenance, and replacement costs more than justify the investment. Additionally, the improved safety, environmental performance, and compliance benefits further enhance the value proposition of premium mud pump liners.
For engineers and procurement managers responsible for drilling operations, selecting the right mud pump liners is a critical decision that can have a significant impact on overall project success. By considering the specific requirements of your drilling environment and selecting liners that match those needs, you can optimize performance, reduce costs, and ensure the long-term success of your drilling operations.
Investing in high-quality mud pump liners is not just an expense—it’s a strategic investment in the efficiency, reliability, and sustainability of your drilling operations. With advancements in material science and manufacturing technology continuing to drive improvements in liner performance, there has never been a better time to upgrade to premium mud pump liners.
