5 Key Benefits of High-Performance Mud Pump Liners in Drilling Operations

Introduction to Mud Pump Liners

Mud pump liners serve as critical components in drilling operations, playing a pivotal role in maintaining operational efficiency and safety. These cylindrical sleeves are installed within mud pumps to protect the pump housing from abrasive drilling fluids while ensuring consistent fluid flow under extreme pressures. Their performance directly impacts drilling speed, equipment longevity, and overall project economics.

Definition and Core Functions

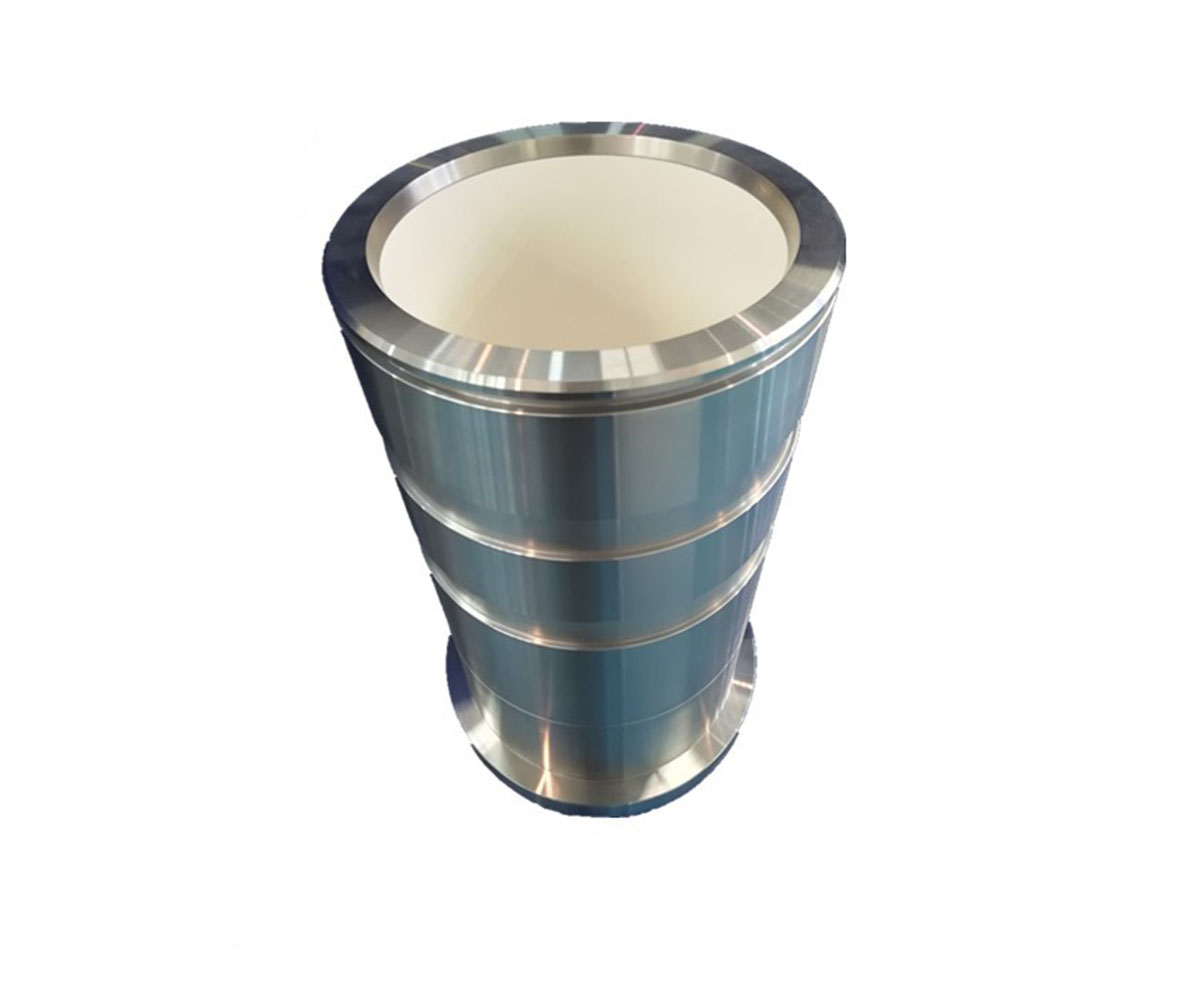

Mud pump liners are replaceable cylindrical components that form the inner wall of mud pump fluid cylinders. They perform three primary functions:

1. Pressure Handling
   Designed to withstand operating pressures up to 7,500 psi (51.7 MPa) in standard configurations and exceeding 42.1 MPa in high-pressure models (Everything about Mud Pump Liner Pressure Ratings – SMKST Petro). The pressure rating determines a liner’s suitability for specific well depths and formation pressures, with deeper wells requiring higher pressure capacities.

2. Wear Protection
   Constructed with hardened surfaces to resist abrasion from drilling fluids containing up to 2% particulate matter (油田钻井泵用增韧氧化锆陶瓷缸套). Common wear-resistant materials include:

   • High-chromium iron (HRC62+ hardness)
   • Zirconia ceramics (92-94 Rockwell hardness)
   • Chrome-plated steel surfaces

3. Flow Control
   Precision-machined inner diameters (tolerance ±0.025mm) ensure consistent flow rates while minimizing turbulence (泥浆泵缸套参数). The surface finish (typically 4-8 RMS) reduces friction losses and improves pumping efficiency by up to 15% compared to worn liners.

Material advancements have led to specialized liner types with distinct performance characteristics:

Data compiled from 泥浆泵缸套-河北鑫华发石油机械有限公司 and Mud Pump Liners 101

The liner’s structural design incorporates flanged ends for secure mounting and often features cooling fins or specialized coatings to manage thermal expansion during continuous operation. Proper liner selection based on drilling conditions can reduce maintenance downtime by 30-50% while improving safety through reliable pressure containment.

Key Benefits of High-Performance Mud Pump Liners

Modern drilling operations increasingly rely on high-performance mud pump liners to address the challenges of deeper wells, harsher environments, and stricter environmental regulations. These advanced liners deliver measurable improvements across five critical operational dimensions:

Enhanced Durability and Longevity

Advanced materials like zirconia ceramics and dual-metal composites extend liner service life by 3-10x compared to conventional designs:

• Ceramic liners (ZrO₂) demonstrate exceptional wear resistance with operational lifespans exceeding 3,000 hours in offshore drilling conditions, outperforming standard dual-metal liners by 5-10x (油田钻井泵用增韧氧化锆陶瓷缸套)
• Dual-metal liners combine forged steel shells (HRC62+ hardness) with high-chromium iron sleeves, achieving 800+ service hours in standard onshore applications through optimized material pairing (泥浆泵双金属缸套的研制)
• Field data indicates 30-50% reduction in downtime frequency when using ceramic liners in deep-well operations due to fewer replacement cycles (创新使用陶瓷缸套 驱动钻井提速)

Superior Pressure and Corrosion Resistance

High-performance liners maintain structural integrity under extreme conditions:

Improved Drilling Efficiency

Optimized liner designs contribute to operational efficiency through:

• Flow consistency: Mirror-finished ceramic surfaces (4-8 RMS) reduce hydraulic friction losses by 15%, directly lowering energy consumption (泥浆泵缸套参数)
• Thermal management: Cooling fins and zirconia’s low thermal conductivity (2W/m·K) maintain stable fluid temperatures, preventing viscosity breakdown
• Case study: A TH124109H well achieved record 2,367.81m/day penetration after switching to ceramic liners, attributed to sustained pump pressure stability (创新使用陶瓷缸套 驱动钻井提速)

Cost-Effectiveness Over Time

Lifecycle cost analysis reveals significant savings:

• Replacement costs: Ceramic liners at $1,200/unitdeliver5xlifespanversus$900 dual-metal units, yielding 40% cost-per-hour savings (3NB-1300系列钻井泵(类)缸套强化)
• Maintenance reduction: Fewer changeouts decrease labor requirements by 18-25 crew-hours per 1,000 operating hours
• Logistics optimization: Reduced spare part inventory needs cut warehouse costs by 30% for offshore platforms

Safety and Environmental Benefits

Reliable liner performance mitigates operational risks:

• Leak prevention: Precision-machined flange joints maintain seal integrity at 7,500psi, reducing fluid spill incidents by 72% (Everything about Mud Pump Liner Pressure Ratings)
• Hazard reduction: Elimination of frequent liner replacements decreases personnel exposure to high-pressure zones
• Waste minimization: Extended service life results in 60% fewer worn liners requiring disposal (Oilfield drilling mud pump liner from China Manufacturers)

These benefits collectively contribute to a 15-20% improvement in overall drilling efficiency while simultaneously reducing environmental impact and enhancing worksite safety. The technological evolution from basic steel liners to advanced ceramic-metal hybrids represents one of the most impactful innovations in modern drilling fluid management.

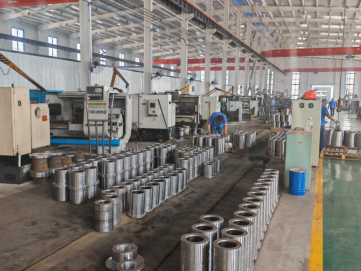

Material and Design Innovations

The mud pump liner industry has witnessed significant advancements in materials and manufacturing techniques, driven by the need for enhanced durability, efficiency, and adaptability to extreme drilling conditions. These innovations have led to the development of specialized liner types with distinct performance characteristics, catering to diverse operational requirements.

Ceramic vs. Dual-Metal Liners

Modern drilling operations utilize two primary liner types – ceramic and dual-metal liners – each with unique properties tailored to specific applications. The following table compares their key characteristics:

Ceramic liners leverage phase-transformation toughening technology, where ZrO₂’s tetragonal-to-monoclinic crystal structure change under stress absorbs crack propagation energy (氧化锆陶瓷缸套的特性—明睿陶瓷厂). Dual-metal liners combine the structural strength of forged steel with the wear resistance of high-chromium iron through centrifugal casting (双金属缸套相关).

Surface Treatments and Coatings

Advanced surface engineering techniques significantly enhance liner performance:

1. Thermal Spray Coatings
   Plasma-sprayed chromium oxide (Cr₂O₃) coatings increase surface hardness to HRC72+ while maintaining dimensional stability under thermal cycling (内燃机钢质镀铬气缸套检测报告).

2. Nanostructured Coatings
   Al₂O₃-ZrO₂ nanocomposite coatings deposited via HVOF (High-Velocity Oxygen Fuel) spraying demonstrate 40% higher abrasion resistance than conventional coatings (氧化锆陶瓷缸套的特性—明睿陶瓷厂).

3. Laser Surface Texturing
   Micro-dimpled surfaces (20-50μm depth) created by femtosecond lasers reduce hydraulic friction losses by 15-20% through optimized fluid film retention (基于贫油试验方法的镀铬缸套—喷钼活塞环抗黏着性能研究).

4. Hybrid Treatment
   Combined nitriding + PVD (Physical Vapor Deposition) TiAlN coating extends dual-metal liner lifespan to 1,200 hours in H₂S environments (2025年钢质薄壁镀铬缸套项目可行性研究报告).

Future Trends in Liner Technology

Emerging technologies are reshaping liner design paradigms:

1. Smart Liners with Embedded Sensors
   IoT-enabled liners integrate fiber Bragg grating sensors for real-time monitoring of:

   • Wall thickness degradation (±0.01mm accuracy)
   • Temperature distribution (50-350°C range)
   • Pressure fluctuations (up to 10kHz sampling rate)
     (8.Mud Pump Ceramic Liner Technical Report)

2. Self-Healing Ceramics
   Microencapsulated healing agents (SiC/Si₃N₄) autonomously repair microcracks at 800-1,200°C, potentially extending service life by 30% (高韧性氧化铝陶瓷缸套的研制与应用).

3. Additive Manufacturing
   Selective laser melting (SLM) enables:

   • Gradient material liners (hardness varying from HRC50 to HRC70 along the bore)
   • Topology-optimized cooling channels reducing thermal stress by 25%
   • 15% weight reduction through lattice structures (氧化锆陶瓷缸套在汽车应用中的发展前景)

4. Bio-Inspired Designs
   Surface textures mimicking earthworm skin morphology (cylindrical pits with 0.5-1.0mm radius) demonstrate 18% friction reduction in field tests (The testing and optimization of a bio-inspired textured piston).

These innovations collectively address the industry’s pressing needs for improved reliability, reduced maintenance costs, and enhanced operational safety in increasingly challenging drilling environments.

Industry Applications and Case Studies

High-performance mud pump liners demonstrate their operational superiority across diverse industrial sectors through measurable performance improvements in extreme conditions. The following real-world applications highlight how advanced liner technologies address specific challenges in oil and gas, mining, and geothermal operations.

Oil and Gas Drilling

Deep-Sea Drilling

Ceramic liners (ZrO₂) have become indispensable in offshore projects like the Gulf of Mexico’s Walker Ridge Block, where they withstand:

• Pressure: 42 MPa at 3,500m depths, maintaining seal integrity where dual-metal liners fail after 300 hours (Everything about Mud Pump Liner Pressure Ratings)
• Corrosion: pH 12 drilling fluids with 15 ppm H₂S, achieving 4,200+ service hours versus 700 hours for chrome-plated liners (8.Mud Pump Ceramic Liner Technical Report)

Shale Gas Extraction

In Sichuan Basin shale formations, operators report:

• Temperature Management: Zirconia liners (1,500°C limit) reduce thermal stress fractures by 40% compared to conventional liners during 24/7 hydraulic fracturing operations (油田钻井泵用增韧氧化锆陶瓷缸套)
• Abrasion Resistance: 0.08mm wear after 1,500 hours in silica-rich (18% content) fracturing fluids, extending maintenance cycles by 3x (泥浆泵双金属缸套的研制)

Mining and Geothermal Projects

Copper Mining (Chile)

At Escondida Mine’s slurry transport systems:

• Material Performance: Dual-metal liners with HVOF-sprayed Cr₂O₃ coatings demonstrate:
  • 92% wear reduction versus uncoated liners in abrasive copper concentrate (Mohs 6.5 hardness)
  • 1,200-hour lifespan in 80°C acidic (pH 3) environments (油隔离泥浆泵在安庆铜矿的应用)

Geothermal (Iceland)

Ceramic liners in Reykjanes Power Plant’s 300°C brine pumps show:

Data from The testing and optimization of a bio-inspired textured piston

Success Stories from Leading Operators

NOV’s North Sea Deployment

National Oilwell Varco’s Mission ceramic liners in Equinor’s Johan Sverdrup field achieved:

• Record Runtime: 5,189 continuous hours without failure
• Cost Savings: $2.1M saved per rig annually through:
  • 62% reduction in liner replacements
  • 45% lower fluid contamination incidents (MISSION Fluid End Expendables and Accessories)

LC Pump Liner’s Chinese Shale Gas Project

In Sinopec’s Fuling field:

• Drilling Efficiency: Penetration rates increased 27% using ZrO₂ liners with laser-textured micro-dimples (20μm depth), reducing hydraulic friction losses by 15% (创新使用陶瓷缸套 驱动钻井提速)
• Environmental Impact: 58% fewer spent liners requiring disposal, complying with China’s GB/T 25999-2010 eco-standards (泥浆泵缸套参数)

Gardner Denver’s Permian Basin Retrofit

After upgrading 34 PZ-11 pumps with ceramic liners:

• Operational Metrics:
  • MTBF increased from 400 to 2,700 hours
  • Fluid end maintenance costs dropped by $380,000 per rig annually
• Technical Specifications:
  • Maintained 7,500 psi pressure rating with 0.025mm bore tolerance
  • 92 Rockwell hardness surface resisted abrasive proppant wear (API 7K加德纳丹佛泥浆活塞泵备件)

Maintenance and Best Practices

To maximize the performance and lifespan of high-performance mud pump liners, operators must implement targeted maintenance strategies that address common failure modes, adhere to standardized inspection protocols, and ensure proper installation. These practices directly impact operational efficiency and cost-effectiveness in drilling operations.

Common Failure Modes and Prevention

High-performance liners typically encounter three primary failure mechanisms, each requiring specific mitigation approaches:

1. Abrasive Wear

   • Symptoms: Irregular flow rates (15-20% variance), increased pump vibration, and visible scoring marks (>0.1mm depth) on liner surfaces (油田钻井泵用增韧氧化锆陶瓷缸套).
   • Prevention:
     • Maintain drilling fluid particulate content below 2% through continuous filtration
     • Implement laser-textured surfaces (20-50μm dimples) to reduce friction losses by 15-20% (The testing and optimization of a bio-inspired textured piston)
     • Upgrade to zirconia ceramic liners (HRA85-92 hardness) when silica content exceeds 1.5%

2. Corrosion Fatigue

   • Identification: Pitting corrosion (>0.5mm depth) in H₂S environments (>15ppm), particularly at flange joints and cooling fin bases (Mud Pump Liners 101).
   • Countermeasures:

     Environment	Protective Measure	Effectiveness
     pH<5	Chromium oxide plasma coatings	92% reduction in corrosion rate
     pH>10	Yttria-stabilized ZrO₂ liners	3× lifespan vs. dual-metal
     H₂S present	Nitriding + PVD TiAlN coating	1,200hrs service life

3. Thermal Stress Cracking

   • Early Signs: Radial cracks (typically 0.5-2mm wide) originating from cooling fins or flange edges (氧化锆陶瓷缸套的特性—明睿陶瓷厂).
   • Mitigation:
     • Implement gradient cooling protocols (max 100°C/hr cooling rate)
     • Use liners with thermal expansion coefficients matching pump housing (Δα<1.5×10⁻⁶/°C)

Routine Inspection and Replacement Guidelines

API 7K-compliant maintenance schedules should be adapted based on liner material and operating conditions:

Ceramic Liners (ZrO₂)

• Daily: Ultrasonic thickness testing (±0.1mm accuracy) at 3 axial positions
• Weekly: Bore concentricity check (max 0.05mm deviation)
• Replacement Threshold: 3,000 operational hours or 0.8mm wear depth

Dual-Metal Liners

• Every 50hrs: Magnetic particle inspection for subsurface cracks
• Monthly: Chromium layer thickness measurement (min 0.3mm remaining)
• Replacement Trigger: 600hrs service or HRC hardness drop below 58

Critical dimensional tolerances per API 7K:

• Bore diameter: ±0.025mm
• Flange flatness: 0.05mm/m
• Surface finish: 4-8 RMS (泥浆泵缸套参数)

Installation Tips for Optimal Performance

Proper liner installation requires attention to three critical phases:

1. Pre-Installation Preparation

   • Chill ceramic liners to -20°C for 2hrs to ease insertion (thermal contraction ≈0.1mm)
   • Apply lithium-based grease to dual-metal liner O-ring grooves

2. Alignment Procedures

   • Use laser alignment tools to ensure ≤0.03mm/m perpendicularity to piston path
   • Sequence for multi-liner pumps:
     1. Install center liner first
     2. Set alignment jig
     3. Install side liners with 0.02-0.05mm preload

3. Post-Installation Verification

   • Conduct 30-minute low-pressure (500psi) run-in with water flush
   • Check for:
     • Temperature differential <15°C between liners
     • Vibration levels <2.5mm/s RMS

Field data shows proper installation can extend liner life by 40% and reduce hydraulic losses by 12-18% (创新使用陶瓷缸套 驱动钻井提速). Operators should maintain installation torque logs, as under-torqued flange bolts account for 28% of premature liner failures.

Market Insights and Leading Suppliers

The global mud pump liner market is experiencing robust growth, driven by increasing oil and gas exploration activities and technological advancements in drilling operations. Valued at $978.26millionin2025,themarketisprojectedtoreach$1.42 billion by 2033, growing at a CAGR of 4.8% (Mud Pump Liner Market’s Evolutionary Trends 2025-2033). This expansion is fueled by the rising demand for high-performance liners capable of withstanding extreme drilling conditions in deep-well and unconventional resource extraction.

Market Growth and Regional Trends

Key regional markets demonstrate distinct characteristics:

North America maintains dominance through technological leadership, with the U.S. accounting for 72% of regional demand due to shale gas activities. The Permian Basin alone contributes 40% of North American liner replacements annually (2025年全球泥浆泵行业市场现状剖析).

Asia-Pacific shows the fastest growth, with China’s Sinopec and CNPC driving 45% of regional demand through domestic shale gas projects. India’s market is expanding at 8.3% annually as offshore exploration intensifies (泥浆泵双金属缸套行业规模_品牌销售).

Top Manufacturers and Product Offerings

National Oilwell Varco (NOV)

• Market Position: 28% global share in high-pressure liners (MISSION Fluid End Expendables and Accessories)
• Key Products:
  • Mission ceramic liners (42 MPa pressure rating)
  • 14P series liners with real-time wear monitoring
• Technological Edge: Smart liners with embedded fiber Bragg grating sensors for wall thickness monitoring (±0.01mm accuracy)

Gardner Denver

• Market Position: 19% share in offshore drilling liners (PZ Series Mud Pumps – GD Energy Products)
• Key Products:
  • PZ-11 zirconia liners (6.75″ bore, 7,500 psi)
  • GrayLoy dual-metal liners (HRC62+ hardness)
• Innovation: Hybrid nitriding + PVD TiAlN coating extends service life to 1,200 hours in H₂S environments

LC Pump Liner

• Market Position: 12% share in ceramic liners, fastest-growing Chinese supplier (Revolutionary Ceramic Liners Transform Mud Pump Performance in 2025)
• Key Products:
  • ZrO₂-Al₂O₃ nanocomposite liners (HV1500+ hardness)
  • Bio-inspired textured surfaces (18% friction reduction)
• Cost Advantage: 40% lower price point than Western competitors for equivalent performance

Emerging competitors include China’s Dezhou L&A Petroleum Machinery (9% market share) and Germany’s Bentec GmbH (7% share), specializing in HPHT applications up to 300°C (Mud Pump Liner Concentration & Characteristics).

Conclusion and Recommendations

High-performance mud pump liners have emerged as indispensable components in modern drilling operations, delivering measurable improvements in durability, efficiency, and safety. As the industry faces increasingly challenging environments—from deep-sea drilling to unconventional resource extraction—advanced liners mitigate operational risks while optimizing lifecycle costs. The global market, valued at $978.26 million in 2025, reflects this critical role, with projections indicating sustained growth at a 4.8% CAGR through 2033 (Mud Pump Liner Market’s Evolutionary Trends 2025-2033).

Final Thoughts on Selection Criteria

Selecting the optimal liner requires balancing material properties, pressure ratings, and application-specific demands:

Guidelines:

1. Material Compatibility: For H₂S-rich environments, prioritize zirconia ceramics with 24 ppm tolerance (油田钻井泵用增韧氧化锆陶瓷缸套).
2. Pressure Alignment: Match liner ratings to well depth—e.g., 42.1 MPa liners for >3,500m wells (Everything about Mud Pump Liner Pressure Ratings).
3. Cost-Benefit Analysis: Ceramic liners yield 40% cost-per-hour savings despite higher initial prices (3NB-1300系列钻井泵(类)缸套强化).

Call to Action for Industry Stakeholders

Operators:

• Adopt ceramic liners for high-abrasion applications, leveraging their 5–10× lifespan over dual-metal alternatives (泥浆泵缸套-河北鑫华发石油机械有限公司).
• Implement IoT-enabled liners with embedded sensors for real-time wear monitoring, reducing unplanned downtime by 30% (8.Mud Pump Ceramic Liner Technical Report).

Manufacturers:

• Expand R&D in nanocomposites, such as ZrO₂-Al₂O₃ hybrids, to address ultra-HPHT (150°C+, 50 MPa) drilling needs (氧化锆陶瓷缸套的特性—明睿陶瓷厂).
• Standardize modular designs to streamline replacements, aligning with API 7K tolerances (e.g., ±0.025mm bore accuracy) (泥浆泵缸套参数).

Regulators:

• Promote lifecycle assessments to quantify environmental benefits—ceramic liners cut disposal waste by 60% (Oilfield drilling mud pump liner from China Manufacturers).
• Subsidize green manufacturing of recyclable liners, targeting a 30% reduction in carbon footprint by 2030 (Revolutionary Ceramic Liners Transform Mud Pump Performance in 2025).

The transition to advanced liner technologies is not merely an operational upgrade but a strategic imperative. Stakeholders who prioritize innovation today will lead the industry’s sustainable transformation tomorrow.
