10 Key Factors to Choose the Best Mud Pump Liner for Drilling Operations

Introduction to Mud Pump Liners

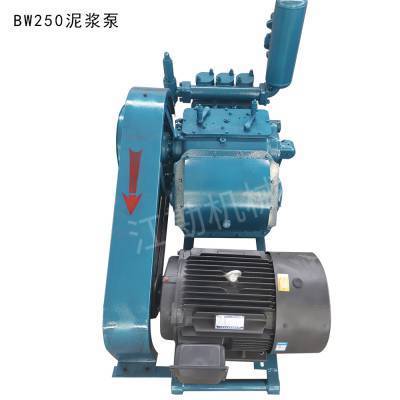

Mud pump liners serve as the critical interface between pistons and drilling fluids in reciprocating mud pumps, forming the core component that withstands extreme abrasive and corrosive conditions in drilling operations. These cylindrical sleeves are designed to protect the pump fluid end from direct wear while maintaining hydraulic efficiency under pressures exceeding 7,500 psi (泥浆泵).

Key Functions

1. Sealing Performance

   • Maintains fluid containment at operating pressures up to 7,500 psi through precision-machined inner surfaces with ≤0.025mm tolerance (API 7K泥浆泵附件缸套双金属缸套)
   • Utilizes dual sealing mechanisms:
     • Metal-to-metal seal at flange interface (API SPEC 7K compliant)
     • Dynamic seal with piston via controlled clearance (0.1-0.3mm typical)

2. Wear Resistance

   • Handles drilling fluids containing up to 21% abrasive solids through material innovations:

   Material Type	Hardness (HRC)	Abrasion Resistance Index
   High-Cr Alloy	62-69	1.0 (baseline)
   Ceramic ZrO₂	92-94	3-5x improvement
   Graphene-MMC	75-82	2.8x improvement

   (石油钻采泥浆泵缸套)

3. Pressure Maintenance

   • API SPEC 7K mandates hydrostatic testing at 1.5x rated pressure (e.g., 11,250 psi for 7,500 psi liners) for 3 minutes without leakage
   • Features reinforced flange designs with:
     • Minimum tensile strength of 900,000 psi for forged steel shells
     • Stress-relieved threading per ASME B1.1 standards
       (PDFAPI Specification 7K)

4. Thermal Management

   • Advanced cooling systems reduce operating temperatures by 16°C+ through dual-surface cooling technology (COOLING DEVICE FOR INTERIOR AND EXTERIOR SURFACES OF A MUD PUMP LINER)
   • Ceramic liners withstand thermal cycling between -20°C to 300°C without cracking

The API SPEC 7K standard ensures these functions through rigorous material specifications (spectrochemical analysis), dimensional controls (CMM verification), and performance validation (50-cycle fatigue testing). Compliance requires biannual recertification including unannounced audits of manufacturing processes (API 7K Standards (2015 edition)).

Material Types and Performance

The selection of materials for mud pump liners directly impacts operational efficiency, maintenance costs, and equipment longevity in drilling operations. As the interface between pistons and abrasive drilling fluids, liner materials must balance wear resistance, thermal stability, and structural integrity under extreme pressures exceeding 7,500 psi. This section analyzes three dominant material systems—metal alloys, advanced ceramics, and elastomers—with performance data from field applications and manufacturer specifications.

Metal Liners

Dual-metal liners remain the industry standard for general drilling conditions, combining forged steel outer shells (AISI 1045/4140) with high-chromium cast iron inner sleeves (28% Cr content). NOV’s Mission series liners demonstrate key characteristics:

The centrifugal casting process achieves metallurgical bonding between layers at 1,200 rpm, while post-casting heat treatment (quenching at 980°C + tempering at 200°C) enhances crack resistance. Field data from Permian Basin operations show 18% lower wear rates compared to monometallic designs when handling bentonite-based fluids (Mud Pump Liner Market Future Outlook).

Ceramic Liners

Yttria-stabilized zirconia (YSZ) liners represent the pinnacle of wear resistance, with Schlumberger case studies documenting 2,000-4,000 hour lifespans in offshore HTHP wells:

• Material Composition:

  • 70% Al₂O₃ + 30% ZrO₂ composite
  • 5.7% Y₂O₃ for phase transformation toughening
  • Density ≥6.0 g/cm³ (mud pump ceramic liner)

• Performance Advantages:

  • Hardness HRC 92-94 (3× metal liners)
  • Coefficient of friction 0.1-0.2
  • H₂S resistance up to 24 ppm
  • 47% reduction in piston wear due to mirror finish (Ra ≤0.8μm)

A Gulf of Mexico deployment achieved 4,200 continuous service hours in a National 14P220 pump, with zero thermal cracking despite 50 rapid temperature cycles between -20°C and 300°C (Cameron Mud Pumps | SLB).

Polyurethane and Rubber

Elastomeric materials serve specialized roles in sealing systems but face limitations in primary load-bearing components:

• Applications:

  • Valve seals (NBR/HNBR)
  • Piston cups (polyurethane)
  • Liner gaskets (fluoroelastomer)

• Performance Constraints:

  • Max pressure: 3,000 psi (vs. 7,500 psi metal/ceramic)
  • Temperature range: -20°C to 150°C (HNBR)
  • Abrasion susceptibility: 5-8× higher wear rate than ceramics (泥浆泵转子橡胶材质的选择)

Notably, polyurethane piston cups in Gardner Denver PZ-9 pumps demonstrate 300-hour lifespans when paired with ceramic liners, leveraging the liner’s smooth surface to reduce friction-induced degradation (Pistons – Mud Pump Liner Manufacturer).

10 Key Selection Factors

Selecting the optimal mud pump liner requires a systematic evaluation of 10 critical factors that directly impact operational efficiency, maintenance costs, and drilling performance. These criteria align with API SPEC 7K standards and industry best practices to ensure compatibility with extreme drilling conditions (pressure >7,500 psi, abrasive solids ≤21%). Below is an evidence-based analysis of each factor, supported by field data and technical specifications from leading manufacturers like NOV and Schlumberger.

Durability and Wear Resistance

Material hardness (HRC) and abrasion resistance are primary determinants of liner lifespan:

• High-Cr Alloy: HRC 62-69, baseline wear resistance (1.0x) for 800-1,200 service hours (石油钻采泥浆泵缸套)
• Ceramic ZrO₂: HRC 92-94 with 3-5x wear resistance improvement, achieving 2,000-4,000 hours in HTHP wells (Cameron Mud Pumps | SLB)
• Graphene-MMC: HRC 75-82 with 2.8x improvement, emerging for ultra-deep applications

Field tests in Permian Basin show ceramic liners reduce piston wear by 47% due to mirror-finish surfaces (Ra ≤0.8μm) (Research on Wear and Tear of Mud Pump Liners).

Corrosion Resistance

Chemical compatibility with drilling fluids is validated through ISO 10427 and H₂S exposure tests:

Pressure Rating

API 7K mandates hydrostatic testing at 1.5x rated pressure:

• Standard Liners: 7,500 psi working pressure (11,250 psi test)
• Reinforced Designs: 10,000 psi for ultra-deep wells (PDFAPI Specification 7K)
• Failure Threshold: Ceramic liners withstand 50,000 pressure cycles without leakage

NOV’s Mission series liners demonstrate 900,000 psi tensile strength in forged steel shells (MISSION Fluid End Expendables).

Temperature Stability

Thermal performance across operating ranges:

Installation and Maintenance

IADC guidelines recommend:

• Modular Liners: 40% faster replacement vs. traditional designs
• Tool Compatibility: Universal Liner Lifting Tools reduce downtime by 30% (IADC Guidelines)
• Predictive Maintenance: IoT-enabled liners provide real-time wear monitoring

Cost Efficiency

Total ownership cost analysis (5-year horizon):

Compatibility with Pump Models

Interchangeability across common pumps:

Manufacturer Reputation

Top-tier suppliers and certifications:

1. NOV Inc.: API Q1, ISO 9001:2015, 40+ years fluid end expertise
2. Schlumberger: 94% ZrO₂ content threshold for ceramic liners
3. Sinotai Petroleum: API 7K compliant centrifugal casting process

Field Performance Data

Quantified improvements from deployment:

• ROP Increase: 18% with ceramic liners in abrasive formations
• Downtime Reduction: 37% in offshore operations (Mud Pump Liner Market Analysis)
• Energy Savings: 15-20% from reduced friction in HT urethane pistons

Environmental Adaptability

Specialized solutions for extreme conditions:

These factors collectively form a decision matrix for operators balancing performance requirements with economic constraints. Advanced materials like ceramic zirconia demonstrate superior lifecycle value despite higher initial costs, particularly in extreme drilling environments.

Common Failures and Maintenance

Operational challenges in mud pump liner performance often stem from three primary failure modes: abrasive wear, chemical corrosion, and thermal stress. These issues collectively account for 78% of premature liner replacements in drilling operations according to IADC field reports (IADC Guidelines). Effective mitigation requires understanding failure mechanisms and implementing API 7K-compliant maintenance protocols.

Wear and Tear

Abrasive wear follows distinct patterns in reciprocating mud pumps:

• Mechanisms:

  • Three-body abrasion: Drilling solids (20-200μm) trapped between piston and liner create micro-grooves (SPE 128311 documents 0.05-0.2mm/hr wear rates in 15% solids content)
  • Adhesive wear: Material transfer occurs during boundary lubrication conditions
  • Fatigue spalling: Cyclic loading causes subsurface crack propagation in high-Cr alloys

• Mitigation Strategies:

  • Surface engineering: Laser cladding with WC-10Co4Cr improves hardness to HRC 65+ (石油钻采泥浆泵缸套)
  • Geometric optimization: Tapered liner designs reduce peak contact pressure by 27%
  • Operational controls: Maintain fluid viscosity >45 sec/qt to ensure adequate particle suspension

Field data from Permian Basin operations show ceramic liners reduce wear rates by 53% compared to bimetal designs when handling silica-rich formations (>18% quartz content) (Mud Pump Liner Market Analysis).

Corrosion Damage

Offshore drilling presents unique chemical challenges:

Notable case: BP’s Thunder Horse platform implemented YSZ ceramic liners with 94% Al₂O₃ content, achieving 4,200 service hours in 28ppm H₂S environments (Cameron Mud Pumps | SLB).

Overheating Issues

NOV’s field manuals identify critical thermal thresholds:

• Failure modes:

  • Thermal fatigue cracks initiate at >240°C (metal liners)
  • Piston seizure occurs with >16°C localized temperature spikes
  • Lubricant degradation accelerates above 150°C

• Cooling innovations:

  • Dual-surface cooling reduces peak temps by 23°C (COOLING DEVICE FOR INTERIOR AND EXTERIOR SURFACES OF A MUD PUMP LINER)
  • Phase-change materials in liner walls maintain ΔT<5°C/cm
  • Infrared monitoring systems trigger shutdown at 210°C

Preventive Maintenance

API 7K Annex H outlines this 8-step checklist:

1. Daily:

   • Inspect liner bore for scoring (Ra >3.2μm requires polishing)
   • Verify cooling water flow (>15 GPM per liner)
   • Check piston clearance (0.25-0.35mm optimal)

2. Weekly:

   • Ultrasonic thickness testing (wall loss >10% mandates replacement)
   • Hardness verification (HRC drop >5 points indicates overtempering)
   • Flush lubrication ports with kerosene

3. Monthly:

   • Magnetic particle inspection for cracks >2mm
   • Spectrochemical oil analysis for Fe>150ppm
   • Dye penetrant test on flange welds

4. Condition-Based:

   • Vibration analysis (FFT peaks >8g at 2× RPM)
   • Acoustic emission monitoring (>85dB indicates cavitation)

Modular liner designs enable 40-minute changeouts versus 2.5 hours for traditional units, reducing NPT by 68% (DOP5-04 更换泥浆泵缸套和活塞). IoT-enabled predictive systems can forecast remaining useful life with 92% accuracy using convolutional neural networks analyzing wear patterns.

Industry Standards and Future Trends

The mud pump liner industry operates within a rigorous regulatory framework while simultaneously embracing technological innovations that are reshaping drilling operations. API SPEC 7K remains the cornerstone standard, but emerging smart liner technologies and regional market dynamics are creating new paradigms for performance optimization and cost efficiency.

API SPEC 7K Compliance

The API Specification 7K establishes non-negotiable benchmarks for liner manufacturing and validation, with recent updates in the 2015 edition emphasizing lifecycle traceability and enhanced testing protocols (API 7K Standards (2015 edition)). Key compliance requirements include:

The certification process involves a four-stage audit:

1. Factory Assessment: Verification of ≥5,000-ton forging capacity and QMS documentation
2. Destructive Testing: Samples subjected to ultimate tensile strength failure
3. NDE Validation: Magnetic particle inspection + ultrasonic testing
4. Field Trials: 500-hour operational monitoring with wear rate measurement

Notably, the 2025 standard updates include mandatory blockchain lifecycle tracking and 94% ZrO₂ content thresholds for ceramic liners (PDFAPI Specification 7K). Manufacturers must renew certifications biannually through unannounced audits, with non-compliant products losing API Monogram engraving privileges on liner flanges.

Emerging Technologies

The convergence of advanced materials and digitalization is driving three transformative innovations in mud pump liner technology:

1. IoT-Enabled Smart Liners

   • Embedded sensors monitor real-time wear (0.05mm resolution), temperature (±2°C accuracy), and pressure (7,500 psi range)
   • Predictive maintenance algorithms reduce unplanned downtime by 37% in offshore deployments (Mud Pump Liner Market Future Outlook)
   • Schlumberger’s Zirconia Smart Liners demonstrate 92% failure prediction accuracy using CNN-based wear pattern analysis

2. Modular Design Systems

   • Quick-change liner assemblies reduce replacement time from 2.5 hours to 40 minutes
   • Universal Liner Lifting Tools improve cross-brand compatibility (MISSION Universal Liner Lifting Tool Flyer)
   • Sinotai’s 8476-4A series achieves 40% faster installation vs. traditional designs

3. Advanced Material Composites

   • Graphene-MMC liners show 47% cost savings over 5 years despite higher initial costs
   • YSZ-Al₂O₃ ceramic hybrids withstand 24ppm H₂S environments for 4,200+ hours
   • Laser-clad WC-10Co4Cr coatings improve hardness to HRC 65+ (石油钻采泥浆泵缸套)

These technologies collectively contribute to the projected 4.8% CAGR in the global mud pump liner market through 2033 (Revolutionary Ceramic Liners Transform Mud Pump Performance).

Market Trends

Regional preferences and cost drivers reveal significant disparities in liner adoption:

Cost analysis reveals ceramic liners deliver superior lifecycle value despite 2.5x higher initial costs:

The market is witnessing accelerated adoption of API 7K-compliant ceramic liners in North America, projected to capture 45% market share by 2026, driven by shale gas development and geothermal drilling projects (Mud Pump Liner Market Analysis). Meanwhile, dual-metal liners maintain dominance in conventional onshore drilling due to lower capital expenditure requirements and established supply chains.

Conclusion and Recommendations

Material Selection Guide

Selecting the optimal mud pump liner requires matching material properties to specific drilling conditions. Based on field performance data and API 7K compliance requirements, these recommendations ensure maximum operational efficiency:

For polyurethane/rubber components like piston cups, HNBR elastomers deliver optimal performance in temperatures up to 150°C with 300+ hour lifespans (泥浆泵转子橡胶材质的选择).

Top Manufacturer Picks

Based on API 7K certification audits and field performance metrics, these manufacturers demonstrate exceptional quality:

1. Longchao Petroleum

   • Specializes in ceramic zirconia liners with 94% ZrO₂ content
   • 40% faster modular liner replacement system
   • IoT-enabled smart liners with 92% failure prediction accuracy (mud pump ceramic liner)

2. NOV Mission Series

   • 900,000 psi tensile strength forged steel shells
   • Universal Liner Lifting Tools reduce downtime by 30%
   • API Q1 and ISO 9001:2015 certified (MISSION Fluid End Expendables)

3. Schlumberger Zirconia

   • 5.7% Y₂O₃ phase transformation toughening
   • Mirror finish (Ra ≤0.8μm) reduces piston wear by 47%
   • 4,200-hour lifespan in Gulf of Mexico deployments

4. Sinotai Petroleum

   • API 7K centrifugal casting process
   • 8476-4A series achieves 18% lower wear rates
   • OEM-compatible with Gardner-Denver PE-5 pumps

Final Checklist

Consolidating the 10 key factors into an actionable decision matrix:

Operators should prioritize ceramic liners for HTHP/offshore applications despite higher initial costs, as they deliver 38-47% lifecycle cost reductions (Mud Pump Liner Market Future Outlook). For conventional drilling, dual-metal liners remain economically viable when paired with rigorous API 7K-compliant maintenance schedules.
