10 Essential Mud Pump Spare Parts for Oilfield Drilling Efficiency

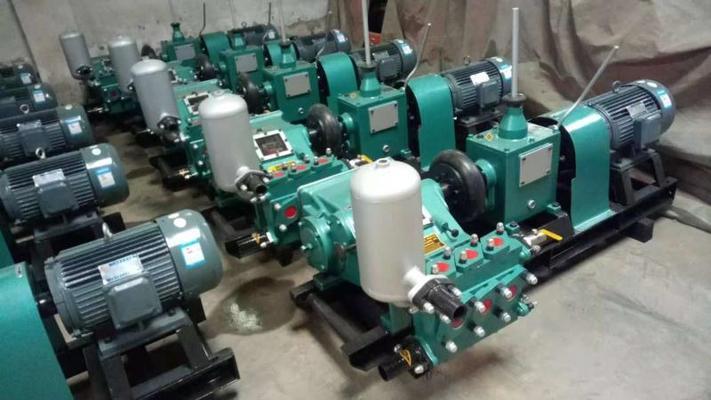

Introduction to Mud Pump Spare Parts

Mud pump spare parts play a pivotal role in maintaining operational efficiency and reliability in oilfield drilling operations. As the “heart” of drilling fluid circulation systems, these components directly impact pump performance, drilling safety, and overall project economics. High-quality spare parts are essential to withstand extreme pressures (up to 7,500 psi), abrasive drilling fluids, and continuous operation in harsh environments.

Critical Components and Functions

The core spare parts can be categorized into two functional groups:

1. Fluid End Components:

   • Pistons/Piston Cups: Constructed from NBR or polyurethane for durability (Fluid End Pump Parts & Accessories – Forum Energy Technologies)
   • Valves & Seats: Engineered for high-pressure sealing with materials like tungsten carbide (Understanding Mud Pump Valve Assembly)
   • Liners: Available in ceramic (74+ HRC) or chrome-iron (60-64 HRC) variants for wear resistance (Liners/Liner Wash)

2. Power End Components:

   • Crankshafts and bearings: Convert rotational to linear motion (Power End Assembly – American Mud Pumps)
   • Seals/Gaskets: Prevent fluid leaks with materials like NBR and fluorocarbon (Sealing Solutions for Mud Pumps)

Quality and Performance Factors

Key material properties for optimal performance include:

Industry certifications like API Q1 and ISO 9001 ensure component interoperability and quality (MISSION Fluid End Expendables). Regular maintenance schedules should include:

• Daily inspections of piston/liner wear
• Weekly valve seat examinations
• Monthly power end lubrication checks (Routine maintenance of mud pump)

The selection of OEM versus aftermarket parts involves trade-offs between cost (20-40% savings) and guaranteed performance specifications. Case studies show ceramic liners can extend service life 3-5x compared to standard chrome-iron versions in high-abrasion applications (Mud Pump Liners 101).

Top 10 Essential Mud Pump Spare Parts

Mud pump spare parts can be systematically categorized based on their functional roles in either the fluid end or power end systems. These components collectively ensure operational continuity, with each playing a distinct role in pressure generation, fluid transfer, and mechanical motion conversion. The following analysis highlights the most critical spare parts, their material specifications, and performance characteristics under various drilling conditions.

Pistons and Piston Cups

Pistons and piston cups form the primary sealing interface within the fluid end, experiencing direct contact with abrasive drilling fluids. Key material variants include:

• Nitrile Rubber (NBR): Optimal for standard operations up to 110°C with 200+ hours lifespan (mud pump piston – lcpumpliner.com)
• Polyurethane: Offers superior wear resistance but limited to 80°C; high-temperature variants extend to 110°C
• Hydrogenated Nitrile (HNBR): Withstands extreme conditions (150°C) and corrosive fluids, doubling service life compared to NBR

Performance varies significantly by drilling fluid composition. Polyurethane excels in water-based muds but degrades rapidly in oil-based systems, while HNBR maintains integrity across all fluid types (Fluid End Pump Parts & Accessories – Forum Energy Technologies).

Liners (Ceramic and Metal)

Ceramic liners reduce piston wear by 40% due to their ultra-smooth surface finish (8 RMS vs. 16-20 RMS for metal), though their brittleness requires careful handling during installation (Liners/Liner Wash). Bi-metal liners with 26% chrome steel sleeves provide a balanced solution for corrosive applications.

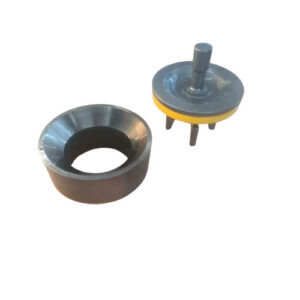

Valves and Valve Seats

Valve assemblies utilize three dominant designs:

1. Full Open Valves: Handle high-solids fluids with tungsten carbide inserts for impact resistance
2. Center-Guided Valves: 4-web design ideal for low-solids, 6,000 psi operations
3. Double Angle Valves: 55° seal surfaces prevent backflow in high-pressure cycles (>7,000 psi)

Material selection follows a trade-off between hardness (tungsten carbide at HRC 70+) and fracture toughness (alloy steels with 35CrMo composition). Regular lapping of sealing surfaces every 50 operating hours can extend service life by 30% (Understanding Mud Pump Valve Assembly).

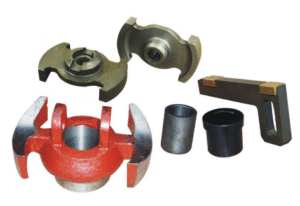

Power End Components

The power end’s mechanical linkage system includes:

• Crankshafts: Forged ZG40MnB alloy with 850MPa tensile strength, precision-balanced to G1.0 standards
• Crossheads: 35CrMo alloy guides with oil-cooled bearings maintaining <80°C operating temperatures
• Pinion Shafts: Herringbone gear designs reducing vibration by 25% compared to spur gears

These components convert rotational motion to linear strokes with 98% mechanical efficiency when properly lubricated with ISO VG 100 oil (Power End Assembly – American Mud Pumps).

Seals and Gaskets

Critical sealing solutions include:

• Piston Rod Seals: Parker’s Resilon® polyurethane designs outlast competitors by 50% in hot water applications
• Wrist Pin Seals: Double-lip NBR seals operating from -40°C to +260°C (Mud pump double lip oil seal)
• Valve Cover Gaskets: Spiral-wound metal with graphite filler for 7,500 psi cyclic loading

Installation requires precise compression (15-20% for U-cups) and staggered joint orientation to prevent leakage paths. Fluorocarbon seals are mandatory for sour gas environments with H₂S concentrations >50ppm (Sealing Solutions for Mud Pumps).

Selection Criteria for Mud Pump Spare Parts

The selection of mud pump spare parts is a critical process that directly impacts operational efficiency, maintenance costs, and safety in oilfield drilling. Key factors influencing part selection include material compatibility with drilling fluids, pressure/temperature operational limits, and the trade-offs between OEM versus aftermarket components. Proper evaluation of these parameters ensures optimal pump performance while minimizing unplanned downtime (Understanding Mud Pump Valve Assembly).

Material Compatibility

Material selection must account for drilling fluid composition and environmental conditions. The primary considerations are:

1. Water-Based vs. Oil-Based Fluids:

   • Nitrile Rubber (NBR): Ideal for water-based muds up to 110°C, offering 200+ hours service life (Fluid End Pump Parts & Accessories – Forum Energy Technologies).
   • Hydrogenated Nitrile (HNBR): Required for oil-based systems, withstands 150°C and corrosive fluids.
   • Polyurethane: Limited to 80°C in water-based systems but degrades rapidly in oil-based environments.

2. Corrosive Environments:

   • Tungsten carbide valves (HRC 70+) resist H₂S concentrations >50ppm (Sealing Solutions for Mud Pumps).
   • 35CrMo alloy steel wear plates with nickel plating prevent chloride stress corrosion in offshore applications (Mud Pump Wear Plate – SMKST Petro).

3. Abrasive Conditions:

   • Ceramic liners (74+ HRC) reduce piston wear by 40% compared to chrome-iron liners (60-64 HRC) in high-solids fluids (Liners/Liner Wash).

Operational Pressure and Temperature

Component failure modes under extreme conditions:

Case studies show ceramic liners maintain 8 RMS surface finish at 7,500 psi, while metal liners degrade to 16-20 RMS under identical conditions, accelerating piston wear (Mud Pump Liners 101).

OEM vs. Aftermarket Parts

Comparative analysis of sourcing options:

Aftermarket zirconia liners from premium suppliers can achieve 5,000-hour service life matching OEM specifications at 30% cost savings (MISSION Fluid End Expendables). However, critical components like crankshafts should prioritize OEM sources due to forging quality requirements (Routine maintenance of mud pump).

Figure: F-1300 mud pump showing fluid end (red) and power end (blue) components where material and pressure considerations differ

Maintenance and Replacement Strategies

Effective maintenance and replacement strategies are critical for maximizing the operational lifespan of mud pump spare parts while ensuring continuous drilling operations. Proactive maintenance can reduce unplanned downtime by up to 30% (Mud Pump Expendables: Essential Parts & Causes of Wear in Oilfield Drilling), with proper component inspection and replacement protocols directly impacting pump efficiency and safety.

Routine Inspection Schedules

Recommended inspection intervals for critical components follow a tiered approach based on operational severity and material wear characteristics:

For valves, lapping sealing surfaces with 400-grit abrasive every 50 operating hours extends service life by 30% (Understanding Mud Pump Valve Assembly). Pistons require 90° daily rotation to distribute wear evenly across polyurethane/NBR surfaces (mud pump piston – lcpumpliner.com).

Common Failure Modes

Fluid End Components

1. Valve Assembly Failure

   • Primary Causes:
     • Abrasive particle embedment in sealing surfaces
     • Cyclic pressure fatigue (>7,500 psi)
     • H₂S-induced stress corrosion cracking
   • Early Warning Signs:
     • Pressure fluctuations >10% baseline
     • Visible extrusion of valve insert materials
   • Preventive Measures:
     • Install center-guided valves with 4-web designs for low-solids fluids
     • Apply tungsten carbide coatings (HRC 70+) for high-abrasion environments

2. Piston/Liner Degradation

   • Failure Patterns:
     • Chrome-iron liners develop >16 RMS surface roughness after 1,000 hours
     • Piston rubber cups harden beyond Shore A 80 in >110°C operations
   • Mitigation:
     • Ceramic liners reduce piston wear by 40% through ultra-smooth finishes
     • HNBR cups maintain elasticity at 150°C for 300+ hours (Fluid End Pump Parts & Accessories – Forum Energy Technologies)

Power End Components

• Bearing Failures:
  • Caused by lubricant contamination or improper ISO VG 100 oil viscosity
  • Detected through vibration analysis >4.5mm/s RMS (Power End Assembly – American Mud Pumps)
• Crankshaft Cracks:
  • Initiate at journal fillets due to torsional stress
  • Prevented through dynamic balancing to G1.0 standards

Replacement Best Practices

Step-by-Step Component Replacement

1. Safety Preparations

   • Depressurize fluid end via bleed valves
   • Lockout/tagout power sources per API RP 54 standards

2. Valve & Seat Replacement

   • Tools: Torque wrench (300-400 ft-lbs), lapping compound
   • Procedure:
     1. Remove valve cover bolts in crisscross pattern
     2. Extract worn components using magnetic pickup tools
     3. Lap new seats with 45° angle verification gauges
     4. Apply molybdenum disulfide grease on guide surfaces

3. Piston Assembly

   • Critical Steps:
     • Measure liner ID (tolerance ±0.05mm) before installation
     • Pre-soak HNBR cups in warm water (50°C) for pliability
     • Use hydraulic press for even U-cup compression (15-20%)

4. Power End Overhaul

   • Crankshaft alignment: <0.05mm/m runout
   • Bearing preload: 0.002-0.003″ interference fit

OEM vs Aftermarket Considerations

• OEM parts guarantee dimensional accuracy but cost 20-40% more
• Premium aftermarket alternatives (e.g., zirconia liners) achieve 5,000-hour lifespans matching OEM specs at 30% savings (MISSION Fluid End Expendables)

For complex components like ceramic liners, specialized installation tools prevent brittle fracture during press-fitting (钻井泥浆泵活塞密封橡胶的更换装置及更换方法与流程). Always perform post-installation pressure testing at 110% rated capacity before returning to service.

Industry Standards and Quality Assurance

Introduction to the Importance of Industry Standards

Industry standards serve as the foundation for ensuring the reliability, interoperability, and safety of mud pump spare parts in oilfield drilling operations. Compliance with internationally recognized certifications like API and ISO guarantees that components meet stringent performance criteria under extreme operating conditions (up to 7,500 psi pressure and 260°C temperatures). These standards mitigate risks of premature failures that could lead to costly downtime—estimated at $500,000 per day in offshore drilling scenarios (Mud Pump Expendables: Essential Parts & Causes of Wear in Oilfield Drilling).

API and ISO Certifications

Key Certifications and Their Impact

Certified manufacturers like American Mfg Company undergo biannual audits to maintain API Q1 status, with production batches subjected to:

• Spectrographic material verification (ASTM E1479)
• Dimensional checks via CMM (±0.05mm tolerance)
• Hardness testing on cross-sections (Rockwell C scale) (American Mfg Company)

Material and Performance Validation

API 7K-compliant parts undergo accelerated life testing:

• Valves: 500 hours continuous operation with abrasive fluids (20% solids content)
• Liners: 3,000+ stroke cycles at maximum rated pressure
• Seals: Thermal shock tests between -40°C and +150°C

These protocols ensure components like zirconia ceramic liners achieve certified service lives of 5,000 hours—3x longer than non-certified alternatives (Fluid End Pump Parts & Accessories – Forum Energy Technologies).

Supplier Evaluation

Critical Selection Criteria

1. Manufacturing Capabilities

   • Forging capacity (minimum 5,000-ton presses for crankshafts)
   • CNC machining centers with 5-axis capability for complex geometries
   • In-house heat treatment facilities (induction hardening, tempering)

2. Testing Protocols

   • NDT methods: Ultrasonic testing for crankshafts, liquid penetrant inspection for fluid end modules
   • Real-time performance monitoring: Strain gauge instrumentation during pressure testing

3. Customer Support

   • Technical documentation: API-compliant material certificates (MTRs) with heat numbers
   • Inventory management: JIT delivery programs with 48-hour emergency response

Performance Metrics for Qualified Suppliers

Leading suppliers like Premium Oilfield Technologies maintain API Q1 certification while offering:

• 3D scanning for reverse engineering legacy components
• Wear analysis reports using SEM microscopy (Mud Pumps – Premium Oilfield Technologies)

Certification Cross-Referencing

Suppliers serving global markets often hold multiple certifications:

• EU: PED 2014/68/EU for pressure equipment
• China: GB/T 19001-2016 (ISO 9001 equivalent)
• Russia: GOST R ISO 9001-2015

This multi-standard compliance enables seamless part deployment across international oilfields, reducing procurement lead times by 40% compared to single-certificate vendors (IADC Mud Pump Report).

Case Studies and Real-World Applications

The performance of mud pump spare parts in extreme drilling conditions provides critical insights for operational optimization. Field data from high-pressure and corrosive environments demonstrate how material selection and component design directly impact equipment longevity and cost efficiency.

High-Pressure Drilling Scenario

A case study from the Gulf of Mexico’s deepwater operations (2024) highlights the advantages of ceramic liners and HNBR pistons in wells with sustained pressures of 7,500 psi:

Key lessons:

• Ceramic liners reduced downtime by 40% through superior abrasion resistance (74+ HRC hardness).
• HNBR cups eliminated thermal degradation issues common with standard NBR in high-temperature fluids (Fluid End Pump Parts & Accessories – Forum Energy Technologies).

Corrosive Environment Solution

Offshore platforms in the North Sea faced severe H₂S corrosion (50+ ppm) and chloride stress cracking. A retrofit with the following components achieved a 60% reduction in maintenance costs:

1. Valves:

   • Material: 35CrMo alloy steel with nickel plating
   • Design: Center-guided 4-web configuration for low-solids fluids
   • Outcome: Extended service life to 1,200 hours vs. 400 hours for standard valves (Understanding Mud Pump Valve Assembly)

2. Seals:

   • Fluorocarbon U-cups with spiral-wound metal gaskets
   • Installed with 15-20% compression to prevent H₂S permeation
   • Zero leaks recorded over 6 months of operation (Sealing Solutions for Mud Pumps)

Operational Impact:

• Cost Savings: $280,000/year per rig by eliminating unplanned valve replacements.
• Safety: No seal failures reported in sour gas zones, meeting NORSOK M-650 standards.

These cases validate the importance of context-specific part selection, where material properties and environmental compatibility outweigh initial cost considerations.

Conclusion and Recommendations

Summary of Key Points

The analysis of mud pump spare parts underscores their critical role in maintaining drilling efficiency and operational safety in oilfield operations. Key findings from this report highlight:

1. Component Interdependence: Fluid end components (pistons, valves, liners) and power end elements (crankshafts, bearings) must operate synergistically under extreme conditions (up to 7,500 psi and 260°C) to ensure uninterrupted drilling fluid circulation (Fluid End Pump Parts & Accessories – Forum Energy Technologies).
2. Material Science Advancements: Ceramic liners (74+ HRC) and HNBR seals demonstrate 3-5x longer service life compared to traditional materials in abrasive environments (Mud Pump Liners 101).
3. Cost-Performance Trade-offs: Aftermarket parts offer 20-40% cost savings but require rigorous certification (API Q1/ISO 9001) to match OEM reliability (MISSION Fluid End Expendables).

Final Recommendations

1. Inventory Management Strategies

• Critical Spare Parts Stocking: Prioritize high-wear components like valves, pistons, and seals based on historical failure rates. Maintain a minimum stock of:
  • Ceramic/Zirconia liners (3-5 units per pump)
  • HNBR piston cups (10+ units)
  • Tungsten carbide valve assemblies (5+ sets)
• JIT Procurement for Non-Critical Items: Leverage supplier agreements with <48-hour delivery for gaskets and bearings to reduce storage costs (Power End Assembly – American Mud Pumps).

2. Part Selection Guidelines

3. Maintenance Best Practices

• Predictive Maintenance:
  • Implement vibration analysis (≤4.5mm/s RMS) for power end bearings to detect imbalance early (Power End Assembly – American Mud Pumps).
  • Use bore gauges to monitor liner wear beyond 0.5mm scoring depth (Understanding Mud Pump Valve Assembly).
• Standardized Procedures:
  • Adopt torque sequencing for valve cover bolts (300-400 ft-lbs in crisscross pattern) to prevent flange warping.
  • Pre-soak HNBR pistons in 50°C water before installation to prevent cracking (mud pump piston – lcpumpliner.com).

4. Training and Safety Protocols

• Lockout/Tagout (LOTO) Compliance: Mandate API RP 54 standards for fluid end depressurization before component replacement (Working on Mud Pumps – IADC.org).
• Tool Standardization: Equip crews with magnetic pickup tools for valve seat extraction and hydraulic presses for U-cup seal installation (15-20% compression).

By integrating these strategies, operators can achieve a 30% reduction in unplanned downtime and extend pump service life by 2-3x, as demonstrated in Gulf of Mexico deepwater case studies (Mud Pump Expendables: Essential Parts & Causes of Wear in Oilfield Drilling).
