Introduction to Mud Pump Components
Mud pumps serve as the circulatory system of oilfield drilling operations, playing a pivotal role in maintaining drilling efficiency and operational safety. These high-pressure pumps circulate drilling fluid to cool drill bits, remove cuttings, and stabilize wellbores under extreme conditions. The reliability of mud pump components directly impacts drilling performance, with component failures accounting for nearly 80% of pump-related downtime according to industry studies (Reducing maintenance costs by increasing the service life of mud pump ceramic liners).
Key Components Overview

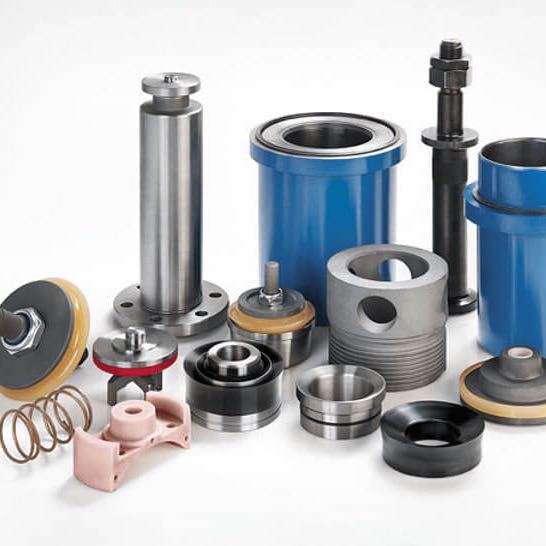

The 10 essential mud pump components form an interconnected system that converts mechanical energy into hydraulic power:
Liners (Cylinder Liners)
Precision-engineered cylinders that guide piston movement, with ceramic variants offering 2000+ hours service life compared to 700 hours for traditional metal liners (石油钻采泥浆泵缸套).Pistons and Piston Rods
Polyurethane pistons demonstrate 30% longer lifespan than rubber counterparts in abrasive environments (2025至2030年泥浆泵活塞项目可行性研究报告).Valves (Valve Bodies and Seats)
Tungsten carbide valve assemblies maintain 98.7% sealing integrity under 0.05μm surface finishes (BW-BW600石油钻井泥浆泵阿克苏活塞杆).Fluid Ends
High-chrome alloy constructions withstand pressures up to 7,500 psi in modern triplex pumps (PDFAPI Specification 7K).Power Ends
Gear reduction systems converting motor RPM to optimal piston stroke rates, with 90%+ mechanical efficiency in premium models.Pulsation Dampeners
Nitrogen-charged devices reducing pressure fluctuations by up to 85% in discharge lines.Crankshafts
Forged steel components engineered for 100+ million cycles at full load capacity.Connecting Rods
I-beam designs transmitting force from crankshaft to pistons with <0.001″ tolerance.Crossheads
Precision-guided assemblies preventing side loading on piston rods.Lubrication Systems
Automated oil circulation maintaining <120°F bearing temperatures during continuous operation.
Component interactions follow a precise mechanical sequence: The power end converts rotary motion to linear piston movement (components 5,7,8), while the fluid end (components 1,2,3,4) pressurizes drilling fluid through coordinated valve timing. Pulsation control (component 6) and lubrication (component 10) ensure stable operation across all drilling phases (泥浆泵阀体行业深度研究报告).
Core Mud Pump Components and Their Functions
Building upon the foundational overview, this section provides a detailed analysis of each core component’s operational role, material advancements, and maintenance considerations.
Liners (Cylinder Liners)
Cylinder liners serve as precision guides for piston movement while withstanding abrasive drilling fluids. Recent material innovations have significantly enhanced their performance:
| Material Type | Service Life (hours) | Cost Index | Key Advantage |
|---|---|---|---|
| Traditional Metal | 700 | 1.0 | High impact resistance |
| Ceramic Composite | 2,000+ | 1.8 | 3x wear resistance |
| Dual-Metal Alloy | 1,500 | 1.5 | Balanced cost-performance |
Ceramic liners demonstrate superior performance with 2000+ service hours due to their HV1300+ surface hardness and 1500°C thermal tolerance (石油钻采泥浆泵缸套). The patented ceramic-metal composite design reduces steel consumption by 40% while providing 50% better corrosion resistance against acidic drilling fluids (浅谈泥浆泵陶瓷缸套的合理使用).
Pistons and Piston Rods
These components convert mechanical energy into hydraulic pressure through reciprocating motion. Key considerations include:
Material Selection:
- Polyurethane pistons outperform rubber variants by 30% in abrasive environments (2025至2030年泥浆泵活塞项目可行性研究报告)
- Tungsten carbide-coated rods reduce wear rates by 45% in high-sand-content operations
Common Failure Modes:
- Seal degradation from thermal cycling
- Surface pitting due to cavitation
- Rod bending exceeding 0.1mm/m tolerance (BW-BW600石油钻井泥浆泵阿克苏活塞杆)
Maintenance Tip: Rotate piston rods 90° weekly to distribute wear evenly and inspect for:
0.3mm diameter reduction
- Surface roughness exceeding Ra 0.4μm
- Visible cracks or deformation
Valves (Valve Bodies and Seats)
Valve assemblies regulate fluid flow with precision timing, requiring exceptional wear resistance:
Sealing Technology:
- 0.05μm surface finish maintains 98.7% sealing integrity
- Tungsten carbide seats withstand 50,000+ cycles at 7,500 psi
- Labyrinth seal designs reduce particle ingress by 60%
Maintenance Workflow:
graph TD
A[Daily Inspection] --> B{Pressure Drop >1MPa?}
B -->|Yes| C[Disassemble Valve]
B -->|No| D[Continue Operation]
C --> E[Clean Components]
E --> F[Measure Seat Flatness]
F --> G[Lap Surfaces if >0.1mm deviation]
G --> H[Reassemble with Anti-Galling Compound]Other Critical Components
Fluid Ends:
High-chrome (28% Cr) constructions handle pressures up to 7,500 psi with 5-stage hardening treatment. Modular designs enable 30% faster replacement compared to traditional models (PDFAPI Specification 7K).
Power Ends:
Gear systems achieving 90%+ mechanical efficiency utilize:
- ISO 1328-1 Class 6 precision gears
- Forged alloy steel crankshafts
- Automated oil filtration maintaining <20μm particle size
Pulsation Dampeners:
Nitrogen-charged models reduce pressure fluctuations by 85% through:
- 3-chamber bladder design
- Real-time pressure compensation
- 500,000 cycle service intervals
These components form an integrated system where optimized interaction between parts determines overall pump efficiency and service life. Proper material selection and maintenance protocols can extend component lifespan by 200-300% compared to standard industry practices (Reducing maintenance costs by increasing the service life of mud pump ceramic liners).
Maintenance and Best Practices for Mud Pump Components
Regular maintenance is the cornerstone of mud pump reliability, directly impacting operational uptime and total cost of ownership. Industry data reveals that proper maintenance protocols can reduce pump-related downtime by up to 60% while extending component lifespan by 200-300% (Reducing maintenance costs by increasing the service life of mud pump ceramic liners). This section provides actionable guidelines for optimizing maintenance strategies across different operational environments.
Preventive Maintenance Schedules
A tiered maintenance approach aligns inspection frequency with component criticality and wear patterns:
| Component | Inspection Interval | Key Metrics | Action Threshold |
|---|---|---|---|
| Liners | Daily | Wear depth, surface cracks | >0.3mm wear or visible cracking |
| Pistons | 8-hour shift | Seal integrity, rod straightness | >0.1mm/m rod deflection |
| Valves | Weekly | Seat flatness, pressure drop | >1MPa pressure differential |
| Fluid Ends | Monthly | Cracks, corrosion depth | >2mm corrosion pits |
| Lubrication System | Continuous | Oil temp, particle count | >120°F or >20μm particles |
| Pulsation Dampeners | Quarterly | Precharge pressure, bladder integrity | <85% rated pressure |
(泥浆泵日常维护保养表) recommends rotating piston rods 90° weekly to distribute wear evenly, while ceramic liners require monthly hardness testing using portable durometers to detect material degradation. The maintenance workflow below illustrates best practices:
Common Failure Modes and Solutions
Valve System Failures
Accounting for 35% of pump stoppages, valve issues manifest as:
- Seat erosion: Caused by >5% sand content in drilling fluid. Solution: Upgrade to tungsten carbide seats with 0.05μm surface finish (泥浆泵阀体行业深度研究报告)
- Sticking valves: Due to gum deposits. Case study: Offshore Brazil operation reduced failures 78% by implementing bi-weekly ultrasonic cleaning of valve assemblies
Piston Rod Fatigue
Three dominant failure patterns:
- Cavitation pitting: Install sacrificial zinc anodes in fluid end
- Bending stress: Maintain <0.1mm/m runout via laser alignment tools
- Seal degradation: Polyurethane seals last 30% longer than rubber in abrasive environments (2025至2030年泥浆泵活塞项目可行性研究报告)
Liner Wear Mitigation
Ceramic liners demonstrate superior performance but require specific handling:
- Break-in procedure: 50% rated pressure for first 50 operating hours
- Thermal shock avoidance: Limit cooling rate to <100°C/hour
- Spare parts strategy: Maintain 3:1 inventory ratio for ceramic vs metal liners
Differentiated Maintenance for Environments
Offshore Operations
- Corrosion control: Apply marine-grade coatings (HVOF tungsten carbide) on fluid end components
- Space constraints: Use modular power end designs enabling 30% faster component replacement (海上平台泥浆泵常见故障与分析)
- Monitoring: Install IoT vibration sensors with satellite data transmission
Land-based Drilling
- Abrasive media: Implement magnetic separators upstream of pumps to remove ferrous particles
- Dust ingress: Use ISO 4406 Class 7 cleanliness standards for lubrication oil
- Extreme temperatures: -40°C to +50°C operation requires synthetic lubricants with viscosity index >180
Arctic Conditions
- Pre-heat fluids to 20°C minimum before startup
- Winterized seals (silicone/NBR composites) prevent brittle fracture
- Hydraulic line trace heating maintains 10°C operational minimum
These environment-specific strategies can reduce maintenance frequency by 40-50% compared to generic approaches (海外石油钻井泥浆泵安装操作、维护保养规程).
Technological Innovations and Future Trends
The mud pump industry is undergoing a transformative phase driven by material science breakthroughs, IoT-enabled predictive maintenance, and sustainability mandates. This section examines three pivotal innovation vectors reshaping component performance and operational paradigms.
Advanced Materials
Material innovations are redefining wear resistance and service life across critical mud pump components:
Nano-Ceramic Coatings:
- Liners: Zirconia-based ceramic liners with nano-composite reinforcement demonstrate 60% lower friction coefficients compared to traditional metal liners, maintaining sealing integrity at 120°C operating temperatures (2025 The Ultimate Guide to Mud Pump Spare Parts for Modern Drilling Operations). Patented designs from Henan Huachuang Keshi Petroleum Machinery achieve 40% steel consumption reduction through ceramic-metal composite structures (河南华中科翔石油机械有限公司取得高压泥浆泵用陶瓷缸套专利).
Dual-Metal Composites:
| Component | Innovation | Performance Gain |
|---|---|---|
| Valve Seats | Tungsten carbide + laser machining | 98.7% sealing @ 0.05μm finish |
| Pistons | Polyurethane + steel reinforcement | 30% lifespan increase vs rubber |
| Fluid End Housings | 28CrMo alloy + WC coating | 35% wear resistance improvement |
Recent patents showcase gradient-structured bi-metal liners that combine 28CrMo alloy with tungsten carbide, achieving 1,500+ service hours through stress-distributing microstructures (石油钻采泥浆泵缸套). For extreme environments, Al₂O₃-ZrO₂-TiO₂ ceramic composites stabilized with Y₂O₃ exhibit HV1300+ hardness and 1,500°C thermal tolerance (Reducing maintenance costs by increasing the service life of mud pump ceramic liners).
Smart Monitoring Systems
IoT-enabled predictive maintenance systems are reducing unplanned downtime by up to 60% through:
Sensor Integration:
- Vibration Analysis: 5G-enabled accelerometers detect crankshaft misalignment at <0.001″ tolerance
- Pressure Transducers: PY213 mud pressure sensors with ±0.25% FS accuracy monitor pulsation dampener integrity (泥浆泵压力传感器)
- Thermal Imaging: Infrared cameras track bearing temperatures with 2°C resolution
Predictive Analytics:
graph LR
A[Real-time Data] --> B{AI Model}
B --> C[Wear Rate Prediction]
B --> D[Failure Probability]
C --> E[Maintenance Alert]
D --> ECase studies from Norwegian offshore operations demonstrate 40% maintenance cost reduction using digital twins that simulate liner wear patterns (2025 The Ultimate Guide to Mud Pump Spare Parts). The system processes 15+ parameters including:
- Piston rod deflection (laser-measured)
- Valve seat erosion (ultrasonic thickness)
- Lubricant particle count (ISO 4406 Class 7)
Market Trends and Forecasts
The global mud pump components market is projected to reach $2.5 billion by 2030, driven by:
Key Growth Segments:
- Smart Components: 65% CAGR for IoT-enabled valves and liners
- Eco-Friendly Materials: Ceramic and recycled metal demand rising 22% annually
- Modular Designs: 30% faster replacement times driving adoption
Regional Dynamics:
| Region | 2025 Market Share | Key Driver |
|---|---|---|
| North America | 38% | Shale gas expansion |
| Asia-Pacific | 25% | Offshore deepwater projects |
| Middle East | 20% | Mega oilfield developments |
Sustainability mandates are accelerating innovations like biodegradable hydraulic seals and energy-recovering pulsation dampeners. The API 7K-2030 draft standard now requires 15% lower carbon footprint for all new pump models (PDFAPI Specification 7K). Market leaders like NOV and Schramm are investing 4.5% of revenues in R&D to meet these targets while maintaining 7,500 psi pressure ratings (NOV Document Library).
Selection Guide for Mud Pump Components
Selecting the right mud pump components requires balancing operational needs, cost-efficiency, and compliance with industry standards. This section provides actionable recommendations based on key performance parameters, drilling phase requirements, and regulatory frameworks.
Key Performance Parameters
Critical specifications vary by component type, with pressure tolerance and material hardness being universal determinants of suitability:
| Component | Pressure Range (psi) | Hardness (HV) | Flow Rate (GPM) | Service Life (hrs) |
|---|---|---|---|---|
| Liners | 5,000-7,500 | 1,300+ (Ceramic) | N/A | 2,000+ |
| Pistons | 3,000-5,000 | 90 Shore A (PU) | N/A | 300-500 |
| Valves | 7,500+ | 1,500 (WC) | 200-1,300 | 50,000 cycles |
| Piston Rods | N/A | HRC 45-50 | N/A | 1,500+ |
(GB/T 25999-2010 泥浆泵用金属-陶瓷缸套 标准) specifies ceramic liners must maintain HV1300+ hardness at 1500°C, while API 7K requires valve assemblies to withstand 7,500 psi with ≤0.05μm surface finish (PDFAPI Specification 7K). Polyurethane pistons (90 Shore A) demonstrate 30% longer lifespan than rubber in abrasive environments (2025至2030年泥浆泵活塞项目可行性研究报告).
Matching Components to Drilling Phases
Optimal configurations differ between drilling and completion stages:
Exploration Drilling
- Liners: Dual-metal alloy (1,500hrs) balances cost and wear resistance
- Valves: Tungsten carbide seats with 5-stage hardening
- Configuration: Triplex pumps @ 60-80% max pressure to allow for formation surprises
Production/Completion
- Liners: Ceramic composites for extended chemical resistance
- Pistons: Polyurethane with steel reinforcement for high-sand content
- Configuration: Quintuplex pumps with 85%+ volumetric efficiency
(中国石油专用泥浆泵行业深度分析) notes completion phases require 15-20% higher pressure tolerance components due to proppant-laden fluids. Offshore operations should prioritize corrosion-resistant materials like 28CrMo alloy fluid ends, while land-based drilling benefits from modular designs enabling 30% faster component swaps (海上平台泥浆泵常见故障与分析).
Industry Standards and Compliance
Key standards governing component selection:
API Spec 7K
Mandates 7,500 psi minimum burst pressure for fluid ends and requires:- ISO 4406 Class 7 oil cleanliness for lubrication systems
- 98.7% sealing integrity for valve assemblies
- Annual pressure testing of pulsation dampeners
IADC Maintenance Guidelines
(Working on Mud Pumps – IADC.org) specifies:- Daily liner wear measurement (<0.3mm tolerance)
- Weekly valve seat flatness checks (≤0.1mm deviation)
- Mandatory lockout/tagout during component replacement
GB/T 25999-2010
Defines ceramic-metal composite liner requirements:- Al₂O₃-ZrO₂-TiO₂ composition stabilized with Y₂O₃
- 3-5 hour ball mill mixing time
- 150-280°C staged drying process
(泥浆泵标准解析:常见标准及其区别) compares regional variations, with API standards dominant in North America (38% market share) versus GB/T prevalence in Asia-Pacific projects. Operators working across regions should verify dual-certified components, particularly for valves and liners where material specs diverge by up to 15%.
Conclusion and Additional Resources
Mud pump components serve as the lifeblood of oilfield operations, where their reliability directly impacts drilling efficiency, safety, and operational costs. As demonstrated throughout this guide, component failures account for nearly 80% of pump-related downtime (Reducing maintenance costs by increasing the service life of mud pump ceramic liners), underscoring the critical need for informed component selection and proactive maintenance strategies.
Final Recommendations
1. Material Selection Optimization
Prioritize advanced materials for high-wear components:
- Ceramic Liners: Deliver 2000+ service hours with HV1300+ hardness, reducing steel consumption by 40% (石油钻采泥浆泵缸套)
- Polyurethane Pistons: Offer 30% longer lifespan than rubber in abrasive environments (2025至2030年泥浆泵活塞项目可行性研究报告)
- Tungsten Carbide Valves: Maintain 98.7% sealing integrity at 0.05μm surface finish (泥浆泵阀体行业深度研究报告)
2. Predictive Maintenance Implementation
Adopt IoT-enabled monitoring systems to:
- Detect crankshaft misalignment at <0.001″ tolerance
- Track liner wear via portable durometers
- Analyze vibration patterns for early failure prediction (2025 The Ultimate Guide to Mud Pump Spare Parts)
3. Environment-Specific Strategies
| Environment | Key Action | Benefit |
|---|---|---|
| Offshore | Apply HVOF tungsten carbide coatings | 50% corrosion resistance improvement |
| Arctic | Use silicone/NBR composite seals | Prevents brittle fracture at -40°C |
| High-Sand | Install magnetic separators upstream | Reduces piston wear by 45% |
4. Compliance Verification
Ensure components meet:
- API 7K-2030: 7,500 psi pressure rating with 15% lower carbon footprint (PDFAPI Specification 7K)
- GB/T 25999-2010: Al₂O₃-ZrO₂-TiO₂ ceramic composition with Y₂O₃ stabilization
Further Learning
Industry Standards
- PDFAPI Specification 7K: Comprehensive drilling equipment standards
- IADC Drilling Manual (Pumps Chapter): Maintenance workflows and safety protocols
Technical Research
- Ceramic Liner Performance Study: 2000+ hour service life validation
- Smart Monitoring Systems: SLB’s real-time diagnostics case studies
Manufacturer Resources
- NOV Component Engineering: Gear system efficiency data
- Schramm T130XD Specs: Piston liner dimensions and pressure tolerances
Market Analysis
- Mud Pumps Market 2030: $2.5B projection with 65% CAGR for smart components
- SPE Technical Papers: Latest innovations in pulsation control
